XP CU/XLPE/PVC (MULTI-CORES) XLPE Insulated,PVC Sheathed Cable,0.6/1kV,IEC60502

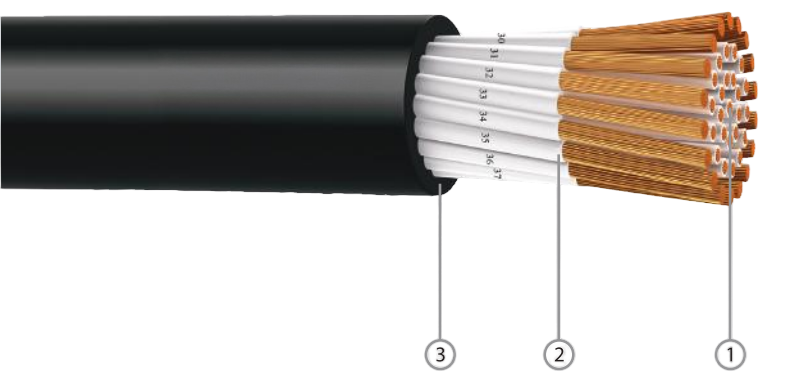

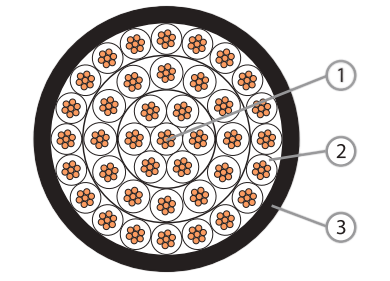

Component 1.Plain Annealed Copper Wire 2.Cross-linked Polyethylene Compound 3.PVC Compound
CONSTRUCTION
Conductor:Plain Annealed Copper,Class 2 Stranded Circular or Compacted
Insulation:Cross-linked Polyethylene(XLPE) Compound
Insulation Colour:White with Black numbering or Others
Assembly:Cores cabled together and covered with Polyester(PET)Tape
Outer Sheath:Polyvinyl Chloride(PVC)Compound Type ST2
Outer Sheath Colour:Black
ELECTRICAL CHARACTERISTICS
Operating Voltage,Uo/U: 0.6/1KV
Operating Temperature: -15℃ to 90℃
Final Short Circuit Temperature: 250℃
REFERENCE STANDARDS |
|
Design Specification: | IEC60502-1 |
Conductor: | IEC60228,BS EN60228 |
Flame Retardancy: | IEC60332-1,BS EN60332-1 |
INSTALLATION REFERENCE
Min.Bending Radius(mm): 8×cable overalldiameter
Max.Pulling Tension(N/mm²): 50
