XP CU/XLPE/PVC (SINGLE CORE) XLPE Insulated,PVC Sheathed Cable,0.6/1kV,IEC60502

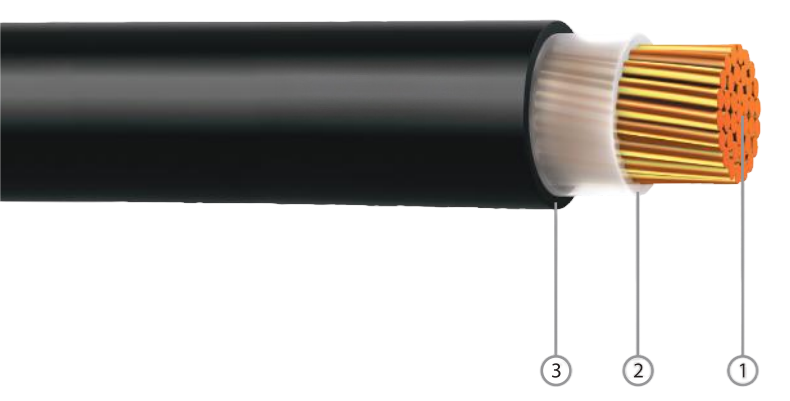

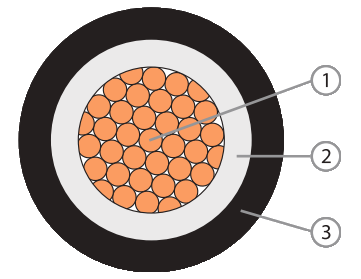

CONSTRUCTION

REFERENCE STANDARDS

Conductor:

Plain  Annealed  CopperClass  2    Stranded  Circular  or  Compacted

Design   Specification:

IEC60502-1

Insulation:

Conductor:

Cross-linked   Polyethylene(XLPE)

IEC60228,BS  EN60228

Insulation    Colour:

Compound                                                        Flame   Retardancy:

Natural

IEC60332-1,BS  EN60332-1

INSTALLATION REFERENCE

Outer   Sheath:

Polyvinyl    Chloride(PVC)                                Min.Bending      Radius(mm):

Compound Type ST2

8xcable      overalldiameter

Max.Pulling      Tension(N/mm²):

50

Outer  Sheath  Colour:

Black

0.6/1KV

ELECTRICAL CHARACTERISTICS Operating     Voltage,Uo/U:

Operating    Temperature:

-15℃ to  90℃

FinalShort   Circuit   Temperature:

250℃
