XSP CU/XLPE/PVC/SWA/PVC (2CORES-5 CORES) XLPE Insulated,PVC Bedded,Galvanised Steel Wire Armoured,PVC Sheathed Cable, 0.6/1kV,IEC60502

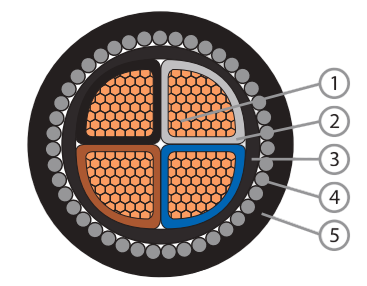

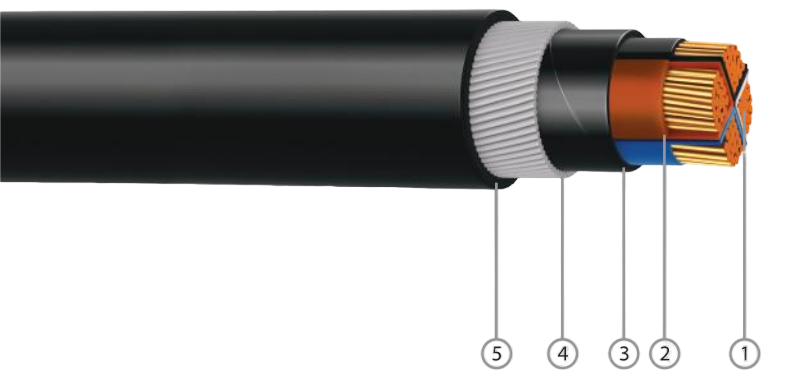

CONSTRUCTION

Conductor:

Plain Annealed  Copper,Class 2  Stranded Circular,Compacted  or Sectored

Outer

Outer

Sheath:

Sheath  Colour:

Polyviny Chloride(PVC)Compound Type  ST2

Black

Insulation    Colour:

2 Cores:

Brown,Blue  or  Red,Black

3 Cores:

Brown,Black,Grey   or   Red,Yellow,Blue

4 Cores:

Brown,Black,Grey,Blue   or   Red,Yellow, Blue,Black

5 Cores:

Brown,Black,Grey,Blue,Green/Yellow           or Red,Yellow,Blue,Black,Green/Yellow            or

White   with   Black   numbering   or   Others

Bedding:

covered     with     Polyester(PET)Tape

PolyvinylChloride(PVC)Compound     Type ST2 or ST2 PVC Tape

Bedding   Colour:

Black

INSTALLATION REFERENCE

Min.Bending      Radius(mm):            8xcable       overalldiameter

Armour:

Galvanized Steel Wire Armoured (SWA)                Max.Pulling       Tension(N/mm²):      70
