XSP CU/XLPE/PVC/SWA/PVC (MULTI-CORES) XLPE Insulated,PVC Bedded,Galvanised Steel Wire Armoured,PVC Sheathed Cable, 0.6/1kV,IEC60502

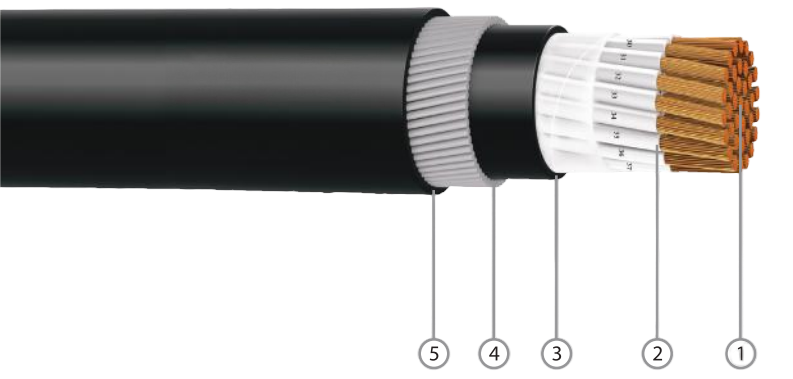

Component 1. Plain Annealed Copper Wire 2.Cross-linked Polyethylene Compound 3. PVC Compound 4. Galvanised Steel Wire Armoured 5.PVC Compound
CONSTRUCTION | ELECTRICAL CHARACTERISTICS |
Conductor: | Plain Annealed CopperClass 2 Stranded Operating Voltage,Uo/U: 0.6/1kV Circular or Compacted Operating Temperature: -15℃ to 90℃ |
Insulation Colour: Assembly: | White with Black numbering or Others Cores cabled together and covered with Polyester(PET)Tape |
Outer Sheath: | Polyvinyl Chloride(PVC)Compound Type ST2 | Min.Bending Max.Pulling | Radius(mm): Tension(N/mm²): | 8×cable overalldiameter 70 |
Outer Sheath Colour: | Black | |||
