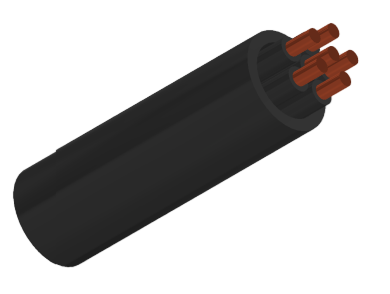

XV

Application and Description

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage

Standard and Approval

IEC 60502-1 NP2363

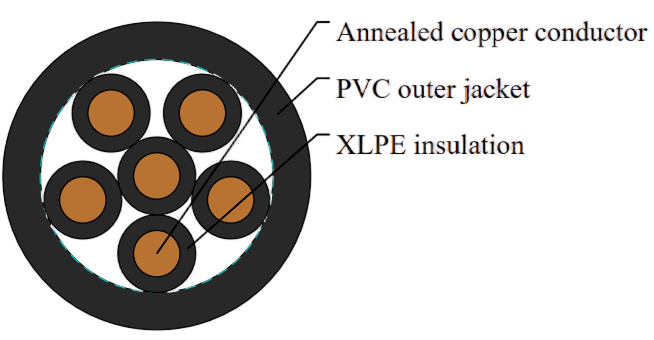

Cable Construction

Plain copper conductor, class 1(<6mmsq)/class2(>6mmsq) to NP 2363

XLPE insulation

Colour coded to HD 308

Not fibrous and not hygroscopic filler(optional)

Flexible PVC, type ST2 outer jacket

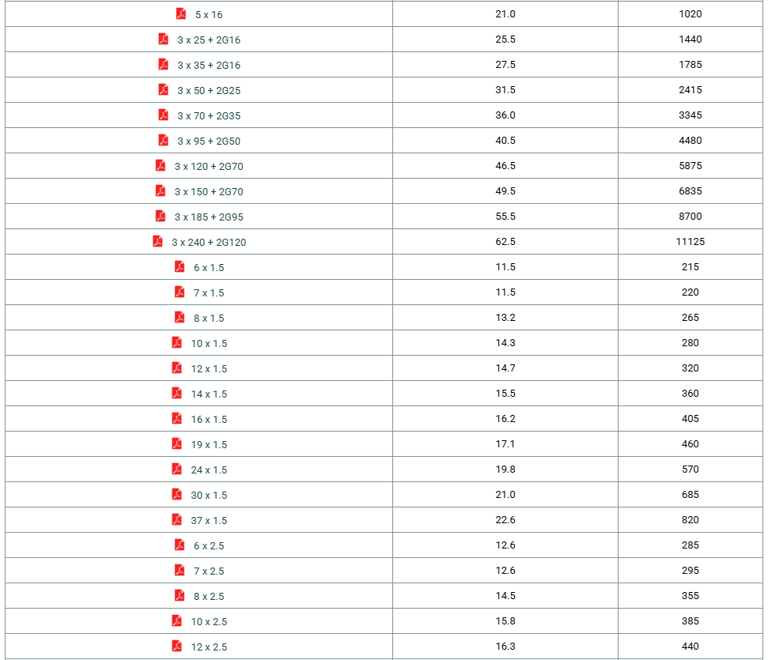

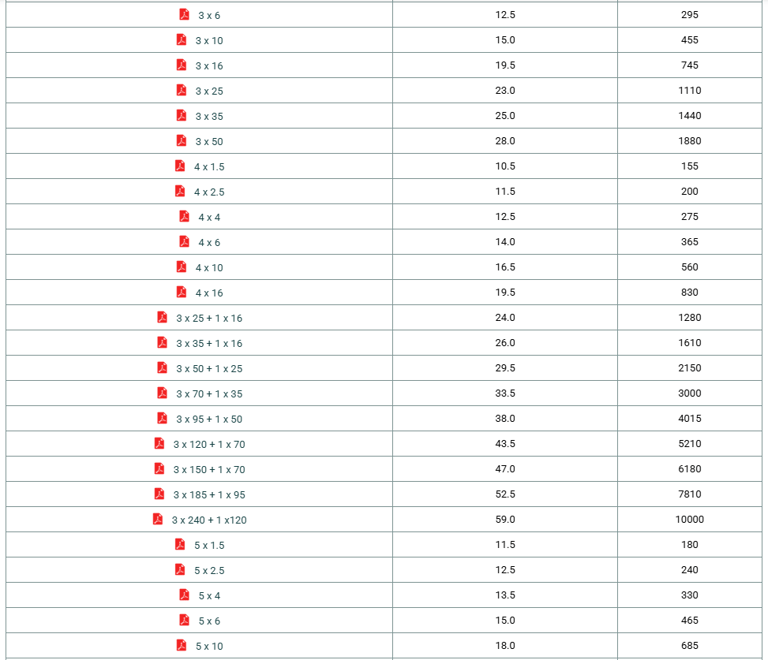

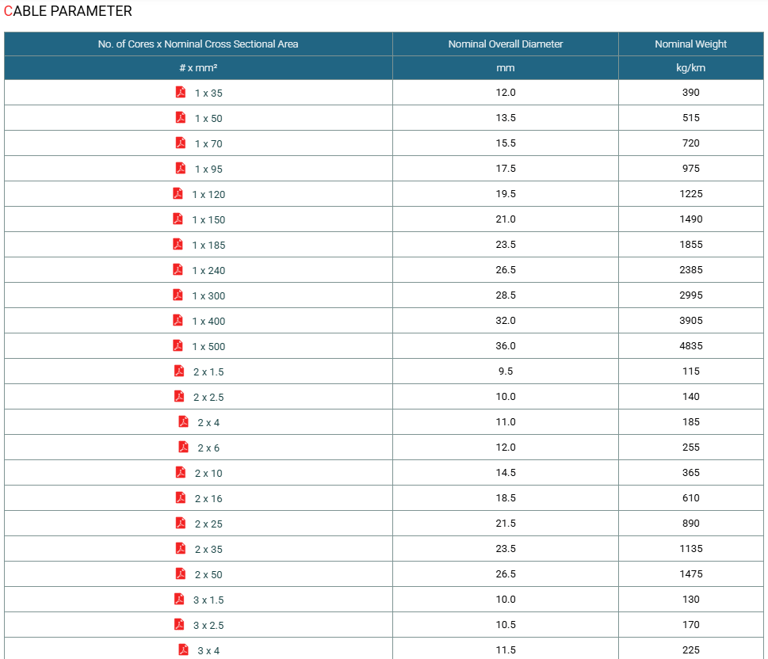

Technical Characteristics
