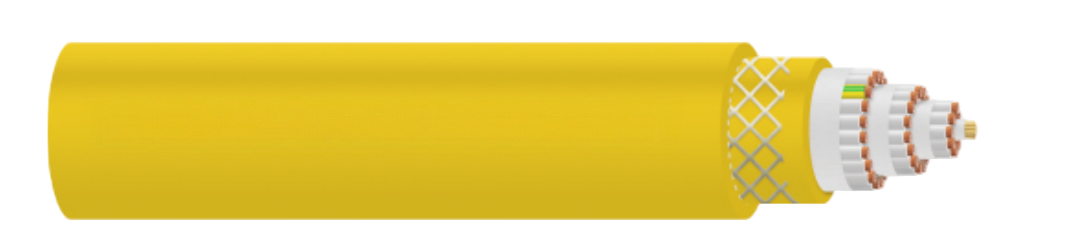

Heavy-Duty Spreader Reeling Cable (N)SHTOEU-J SPREADER – 0.6/1 kV
Rugged rubber crane cable for vertical drum-spreader systems under extreme tensile loads
$10.00
Application:

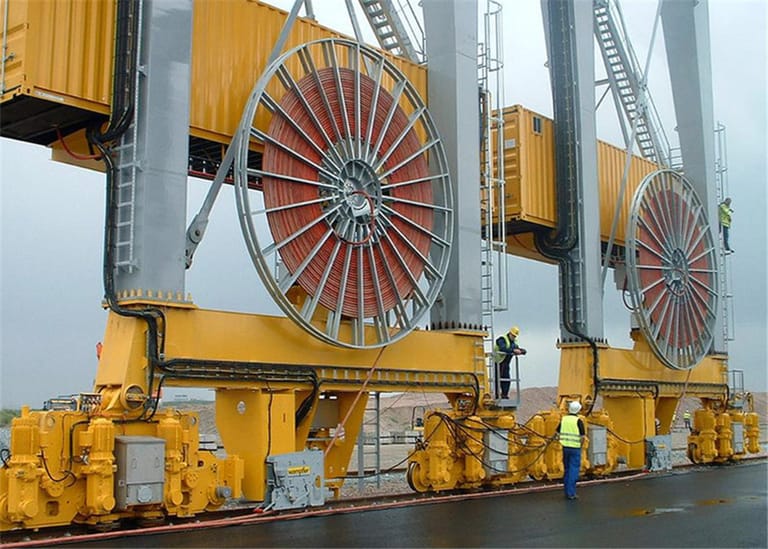

Heavy duty rubber cable for reeling applications with high mechanical stress, especially for high tensile load on vertical drum-spreader systems on e.g. ship-to-shore cranes or other hoisting systems.
Thermal parameters:
Ambient temperature:
fixed installation: -50 °C to 80 °C
reeling operation: -35 °C to 80 °C
Max. permissible conductor temp.: 90 °C
Max. short-circuit temp. at conductor: 250 °C
Mechanical parameters:
Tensile load static/dynamic: 15 / 30 N/mm²
Torsional stresses: ± 50 °/m
Bending radius acc. to DIN VDE 0298-3:
- fixed installation: ≥ 4 x cable - Ø
- reeling application: ≥ 6 x cable - Ø
- on deflection pulleys: ≥ 7.5 x cable - Ø
- min. distance with S-type directional changes:20 x cable - Ø
Reeling speed: ≤ 240 m/min

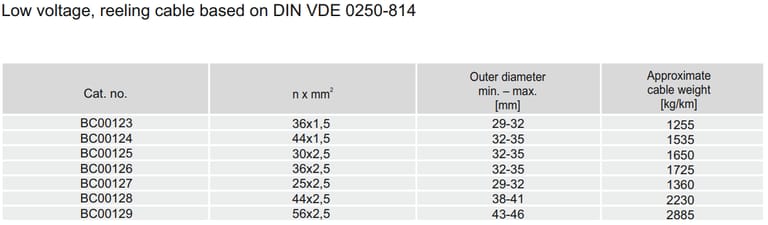

Main cores:
Conductors:plain copper wires, finely stranded, acc. to IEC 60228 class 5
Insulation:HEPR compound acc. to IEC 60502-1,core colours: acc. to DIN VDE 0293-308
Ground conductor:
Conductor:plain copper wires, finely stranded, acc. to IEC 60228 class 5
Insulation: HEPR compound acc. to IEC 60502-1,core colours: green-yellow
Core arrangement: multi cores stranded in layers
Inner sheath:extra heavy duty rubber compound type 5GM5 acc. to DIN VDE 0207-21, filling the interstices
Reinforcement: braid made of synthetic threads, in a vulcanized bond between inner and outer sheath
Outer sheath: extra heavy duty rubber compound type 5GM5 acc. to DIN VDE 0207-21, colour: yellow, inkjet marking
