YHAKXS 6/10KV, 12/20KV, 18/30 KV

APPLICATION

Power use outdoor application, even wet.

Suitable for fixed installations at open air, in tube or canals and underground. Max. Operation temperature: 90°

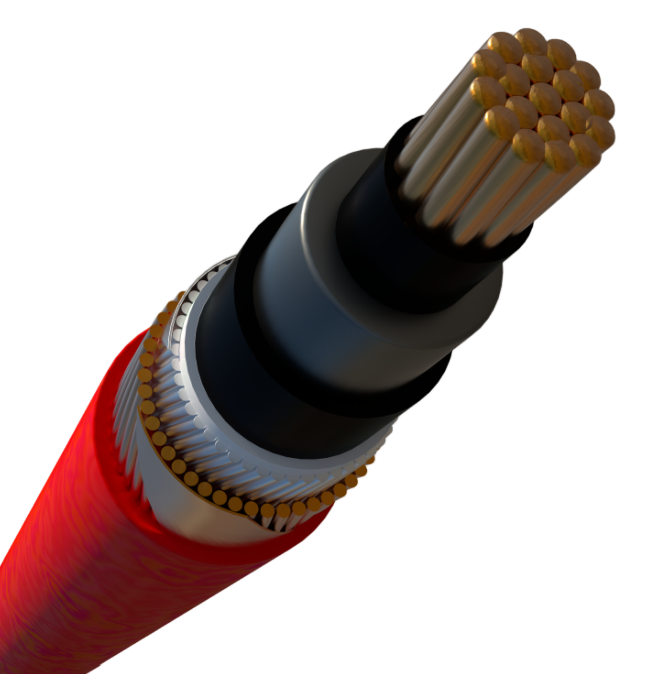

CONSTRUCTION

AL/SC/XLPE/SC/SC TAPE/CU WIRES/ low temp. PVC

1. Conductor:

Compacted Round conductor class 2

2. Insulation:

Extruded inner semi conductive layer, XLPE insulation and   extruded  outer semi conductive layer + Semi-conductive tape

3. Metallic screen layer:

Copper wires with open helix copper tape

4. Outer sheath:

Low Temperature PVC, Red or as per customer requirement
