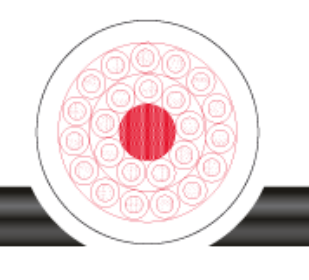

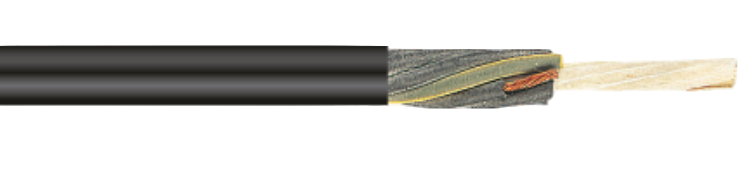

YMHY-KT Power and Control Cable for Lifts and Conveyors
Highly Flexible Cable with Steel Supporting Element, Ideal for Lifting Platforms and Electrical Hoisting Devices in Dry, Humid, Wet, and Outdoor Environments
$10.00

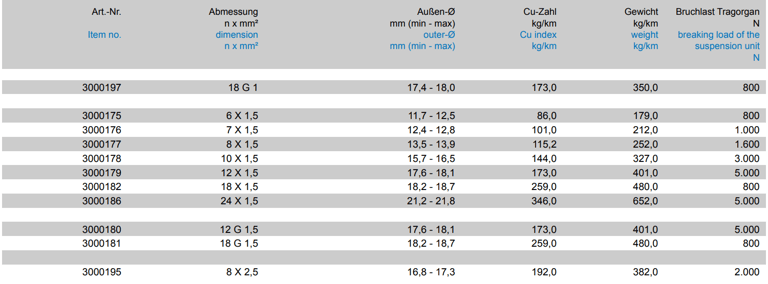

Structure & Specifications | |
conductor material conductor class core insulation core identification stranding outer sheath sheath colour printing rated voltage testing voltage current carrying capacity min. bending radius fixed min. bending radius moved operat. temp. fixed min/max | bare copper strand acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6 PVC acc. to VDE 0293-308 up to 5 wires coloured, from 6 wi- res black with white numerals with or without GNYE cores stranded in layers PVC black, RAL 9005 yes Uo/U: 300/500 V 2,5 kV acc. to DIN VDE, see Technical Guideline 12 x d 20 x d -40 °C / +60 °C |
operat. temp. moved min/max -30 °C / +60 °C temp. at conductor +70 °C burning behavior self-extinguishing and flame retardant acc. to IEC 60332-1 standard similar to DIN VDE 0250 | |
Application |
power and control cable in lift and conveyor facilities, on lifting platforms and especially for teach pads on electrical hoisting devices. Suitable for dry, humid and wet rooms also outdoor. |
Special Features |
• central supporting element with high tensile strength • free from lacquer damaging substances and silicone (during production) |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • see installation guidlines implicitly • Also available as screened type YMHYCY-KT (EMC) • We are pleased to produce special versions, other dimensions, core and jacket co- |
