YMvKmb Cable
This cable is suitable for dry humid areas, in all type of factories, warehouses and depots where there is fire and explosion threat.
$15.00
APPLICATION This cable is suitable for dry humid areas, in all type of factories, warehouses and depots where there is fire and explosion threat. Not suitable for underground. Used in fixed installations laying in conduit on and under plaster. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage 3.5kV Temperature Rating Operating: -15ºC to +90ºC Short Circuit Temperature +250°C Minimum Bending Radius 12 x overall diameter |

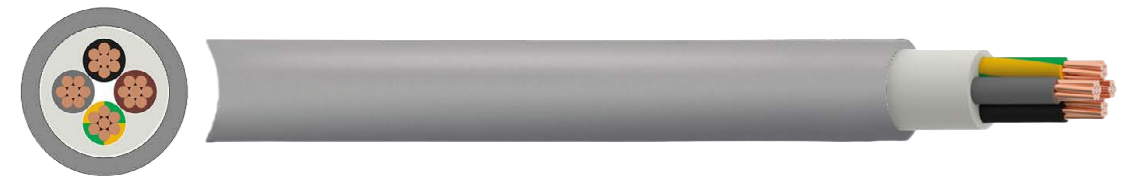

CONSTRUCTION
Conductor
Up to 10mm2 : Class 1 Solid copper
16mm2 and above: Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC (Polyvinyl chloride)
Outer Sheath
PVC FR (Polyvinyl chloride Flame Retardant)
Sheath Colour
Grey
