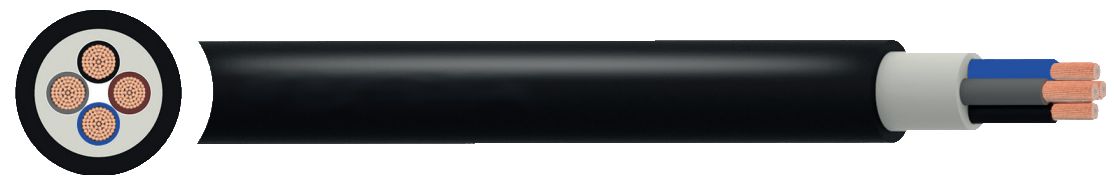

YMz1K Flex Cable
These cables are suitable for dry humid areas. All type of factories, warehouses and depots where there is fire and explosion threat.
$15.00
APPLICATION These cables are suitable for dry humid areas. All type of factories, warehouses and depots where there is fire and explosion threat. Not suitable for underground. Used in fixed installations laying in conduit on and under plaster |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage 3.5kV Minimum Bending Radius Fixed: 12 x overall diameter |
CONSTRUCTION
Conductor
Class 5 Flexible Stranded Copper
Insulation
XLPE (Cross-Linked Polyethylene)
We are on a journey to Net Zero.
Bedding
HFFR (Halogen Free Flame Retardant)
Sheath
HFFR (Halogen Free Flame Retardant)
Core Identification
2 core: Blue Brown
3 core: ● Brown ● Black ● Grey
4 core: Brown ● Black ● Grey ● Blue
5 core: ● Brown ● Black ● Grey ● Blue ● Black
Outer Sheath Colour
● Black
