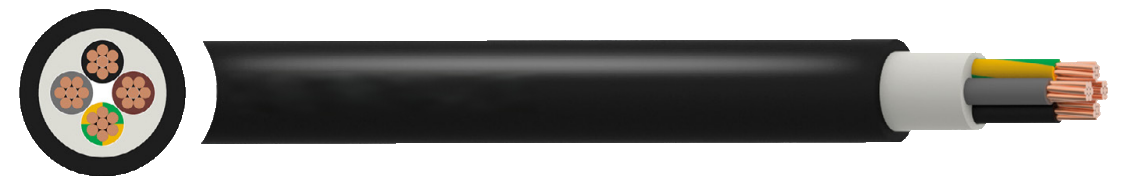

YMz1K mbzh (LSZH) Cable
The YMz1K mbzh (LSZH) cable is suitable for dry humid areas.
$15.00
APPLICATION The YMz1K mbzh (LSZH) cable is suitable for dry humid areas. All type of factories, warehouses and depots where there is fire and explosion threat. Not suitable for underground. This cable can be used in fixed installations laying in conduit on and under plaster. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage 3.5kV AC Temperature Rating Maximum Operating: 90ºC Short Circuit Temperature +250°C Minimum Bending Radius 12 x overall diameter |
CONSTRUCTION
Conductor
Class 1 Solid copper
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Sheath
HFFR (Halogen free flame retardant)
Core Identification
1 core: Black
2 core: Blue Brown
3 core including earth: Blue Brown Green/Yellow
3 core: ● Brown ● Black ● Grey
4 core including earth: ● Brown ● Black ● Grey Green/Yellow
5 core including earth core: ● Brown ● Black ● Grey Green/Yellow Blue
Outer Sheath Colour
● Black
