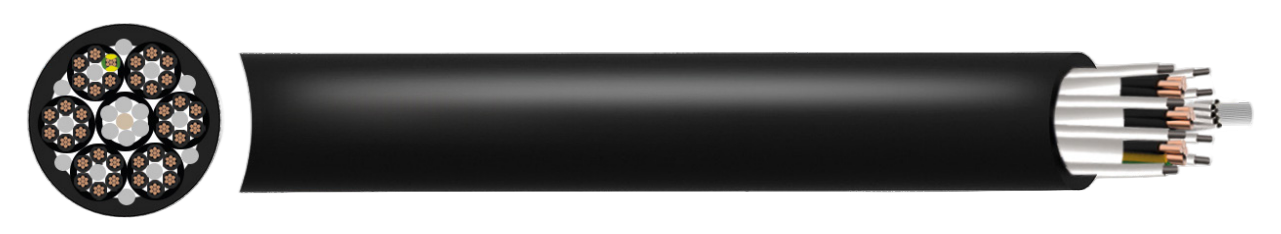

YSLTOE-J Container Crane Control Cable (300/500V)
Specialized cable for gravity-feed collector baskets in high-speed cranes
$150.00
APPLICATION Control cable specifically designed for gravity-feed collector baskets of latest generation high-speed container cranes. In order to avoid cable damages, the cable must be installed into the basket in counter- clockwise direction, free of torsion. The basket diameter must be bigger than 30 x overall diameter). |
CHARACTERISTICS Voltage Rating Uo/U 300/500V Test Voltage 2kV Maximum Tensile Load (N/mm2): 13000 Maximum Working Speed (m/min): 160 Temperature Rating Maximum Short-Circuit temperature:150°C Flexing: -20°C to +60°C Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 5 x overall diameter |
CONSTRUCTION
Central Support Element
Lead balls ropes stranded around, Kevlar® supports
Conductor
Class 5 Bare Flexible Copper
Insulation
Thermoplastic compound
Outer Sheath
Halogen free PUR (Polyurethane)
Outer Sheath Colour ● Black
Note:
Lay up of 6 cores bundles, with central lead ball rope, stranded around the central support.
-40°C version available on request
STANDARDS
Based on DIN VDE 0250 Part 405, VDE 0295, IEC 60228,
VDE 0293, VDE 0298, IEC 60811-404, IEC 60811-403, IEC 60332-1-2
