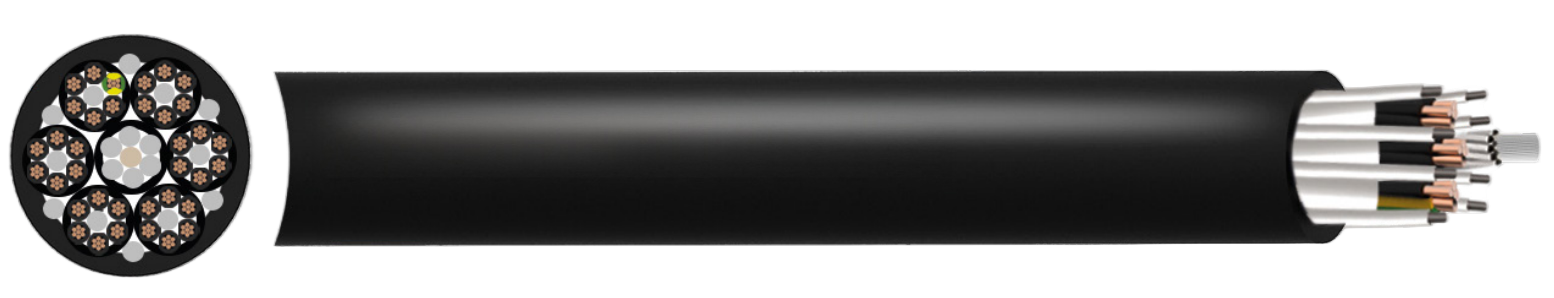

YSLTOE-J Control Cable – 300/500 V
Flexible cable for gravity-feed collector baskets in high-speed container cranes, designed for torsion-free installation
$10.00
APPLICATION
Control cable specifically designed for gravity-feed collector baskets of latest generation high-speed container cranes. In order to avoid cable damages, the cable must be installed into the basket in counter- clockwise direction, free of torsion. The basket diameter must be bigger than 30 x overall diameter).
CHARACTERISTICS
Voltage Rating Uo/U 300/500V
Test Voltage 2kV
Maximum Tensile Load (N/mm2): 13000 Maximum Working Speed (m/min): 160
Temperature Rating
Maximum Short-Circuit temperature:150°C
Flexing: -20°C to +60°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
CONSTRUCTION
Central Support Element
Lead balls ropes stranded around, Kevlar® supports
Conductor
Class 5 Bare Flexible Copper
Insulation
Thermoplastic compound
Outer Sheath
Halogen free PUR (Polyurethane)
Outer Sheath Colour ● Black
Note:
Lay up of 6 cores bundles, with central lead ball rope, stranded around the central support.
-40°C version available on request
STANDARDS
Based on DIN VDE 0250 Part 405, VDE 0295, IEC 60228,
VDE 0293, VDE 0298, IEC 60811-404, IEC 60811-403, IEC 60332-1-2
