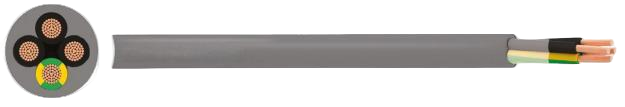

YSLY 0.6/1kV Cable
The YSLY cable is resistant against most usual chemicals, oil and grease.
APPLICATION Flexible power, process control and instrumentation cable for industry, machinery and outdoor environment. The YSLY cable is resistant against most usual chemicals, oil and grease. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating Fixed: -20ºC to +70ºC Installation: -5ºC to +70ºC Minimum Bending Radius Fixed Installation: 4 x overall diameter Flexed Application: 7.5 x overall diameter |
CONSTRUCTION
Conductor
Class 5 flexible stranded bare copper
Protective Conductor
Insulation
PVC (Polyvinyl Chloride)
Outer Sheath
Special PVC-Compound (Polyvinyl Chloride)
Core Identification
Black numebered + Green/Yellow
Sheath Colour
● Black
