YSLYCY 0.6/1kV Black Cable
The YSLYCY cable is resistant against most usual chemicals, oil and grease. This cable is suitable for indoor and outdoor application.
APPLICATION
Flexible power, process control and instrumentation cable for industry, machinery and outdoor environment with increased requirements to electromagnetic compatibility. The YSLYCY cable is resistant against most usual chemicals, oil and grease. This cable is suitable for indoor and outdoor application.
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Fixed: -20°C to +70°C
Installation: -5°C to +70°C
Minimum Bending Radius
Fixed: 5 x overall diameter
Flexed: 10 x overall diameter

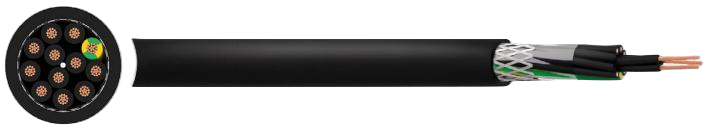

CONSTRUCTION
Conductor
Class 5 flexible stranded bare copper
Insulation
PVC (Polyvinyl Chloride)
Bedding
PVC (Polyvinyl Chloride)
Screen
Copper Braided 70% Coverage
Outer Sheath
Special PVC Compound (Polyvinyl Chloride)
Core Identification
Black with numbers + Green/Yellow
Outer Sheath Colour
● Black
