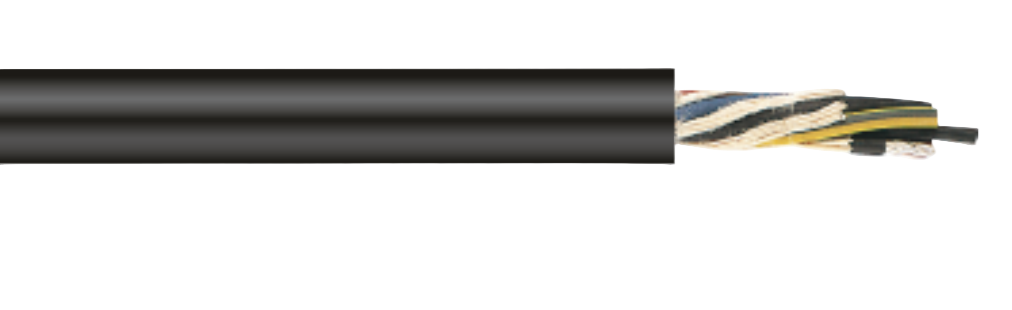

YSSTCY, YSSTVCY High-Flexible Lift Control Cable with Steel Support
Designed for Medium Mechanical Stress, Suitable for Dry and Humid Environments
$8.00
Structure & Specifications |

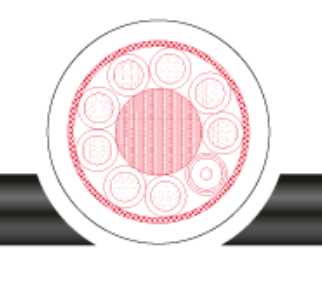

conductor material bare copper strand conductor class acc. to DIN VDE 0295 class 5 resp. IEC 60228 class 5 core insulation PVC core identification coloured acc. to DIN 47100 supporting element galvanised steel rope stranding 2 cores stranded to 1 pair; pairs stranded in layers shield copper braid tinned; coverage ca. 70% outer sheath PVC sheath colour black, RAL 9005 printing yes rated voltage max. 300V current carrying capacity acc. to DIN VDE, see Technical Guideline min. bending radius fixed 12 x d min. bending radius moved 18 x d speed max. 1,6 m / s suspension height max. 50 m operat. temp. fixed min/max -25 °C / +70 °C operat. temp. moved min/max -5 °C / +70 °C burning behavior self-extinguishing and flame retardant acc. to IEC 60332-1 standard similar to DIN VDE 0250 |
Application |
high-flexible lift control cable with steel supporting element for medium mechanical stess. Suitable for dry and humid rooms. |
Special Features |
• without sustain braid • for emergency phone facilities • YSSTCY: shielded, EMC • YSSTVCY: with 75 Ω coxial, EMC • free from lacquer damaging substances and silicone (during production) |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. • Available accessory you'll find on pages 15.35.XX |
