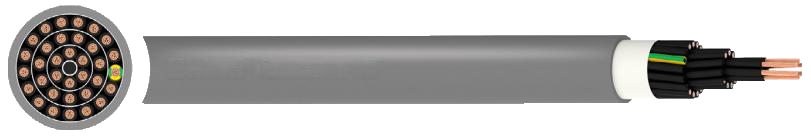

YY LSZH (HSLH) Control Cable
These cables are not suitable for outdoor or underground installations..
APPLICATION
Low smoke halogen-free flexible connecting cable for instrumentation and control equipment for tooling machinery,production lines, and in flexible applications with free movement and no tensile load. Suitable for use in dry, ambient and wet rooms. These cables are not suitable for outdoor or underground installations..
CHARACTERISTICS
Voltage Rating
300/500V
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -15°C to +70°C
Minimum Bending Radius
Fixed: 6 x overall diameter
Flexed: 15 x overall diameter
CONSTRUCTION
Conductor
Class 5 flexible plain copper
Insulation
LSZH (Low Smoke Zero Halogen)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Black with White number
From 3 cores: Green/Yellow
Colour-coded cores available upon request
Sheath Colour
● Grey
