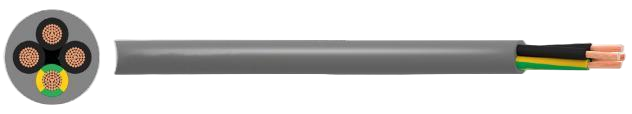

YY PVC (YSLY) Control Cable

APPLICATION

flexible YY control cable for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load.Suitable in dry, ambient and wet rooms. These indoor cables are not used for external or underground installation.

CHARACTERISTICS

Voltage Rating Uo/U 300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 12.5 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible plain copper

Insulation

PVC (Polyvinyl Chloride)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

 Black with     White number

From 3 cores:                                                       Green/Yellow

Colour-coded cores available upon request

Sheath Colour

● Grey
