(Z) NSSHKCGEOEU 0.6/1 kV Coal Cutter Cable – Durable Power Supply Connection for Underground Mining Machines

Underground mining operations demand exceptional reliability and durability from their electrical systems, particularly when it comes to power supply cables for mobile equipment. The (Z) NSSHKCGEOEU 0.6/1 kV cable represents a specialized solution engineered specifically for the challenging conditions encountered in underground coal mining environments. This advanced coal cutter cable serves as a durable power supply connection cable for underground mining machines, providing essential electrical power to critical equipment operating in some of the world's most demanding industrial environments.

The significance of reliable coal cutter cables in underground mining cannot be overstated. Mining operations require continuous power supply to maintain productivity and safety standards, often in environments characterized by extreme mechanical stress, chemical exposure, and harsh operating conditions. Equipment failures in underground settings can result in costly downtime, safety hazards, and significant operational disruptions. The (Z) NSSHKCGEOEU cable addresses these challenges through its robust construction and specialized design features that ensure consistent performance even under the most demanding circumstances.

Introduction to (Z) NSSHKCGEOEU 0.6/1 kV Cable

This cable model features a rated voltage of 0.6/1 kV with a maximum operating voltage of 1.2 kV, making it suitable for medium-power applications in underground mining environments. The designation "(Z)" in the model name specifically indicates its design for free trailing operation, a critical capability that distinguishes it from conventional mining cables. This feature allows the cable to be trailed for considerable distances behind mobile mining equipment during operation, providing the flexibility necessary for modern underground mining practices.

Applications in Underground Mining Equipment

The (Z) NSSHKCGEOEU 0.6/1 kV cable finds extensive application across various types of underground mining equipment, each presenting unique operational challenges that require specialized cable solutions. The versatility of this underground mining cable makes it an ideal choice for powering multiple categories of mobile equipment essential to modern mining operations.

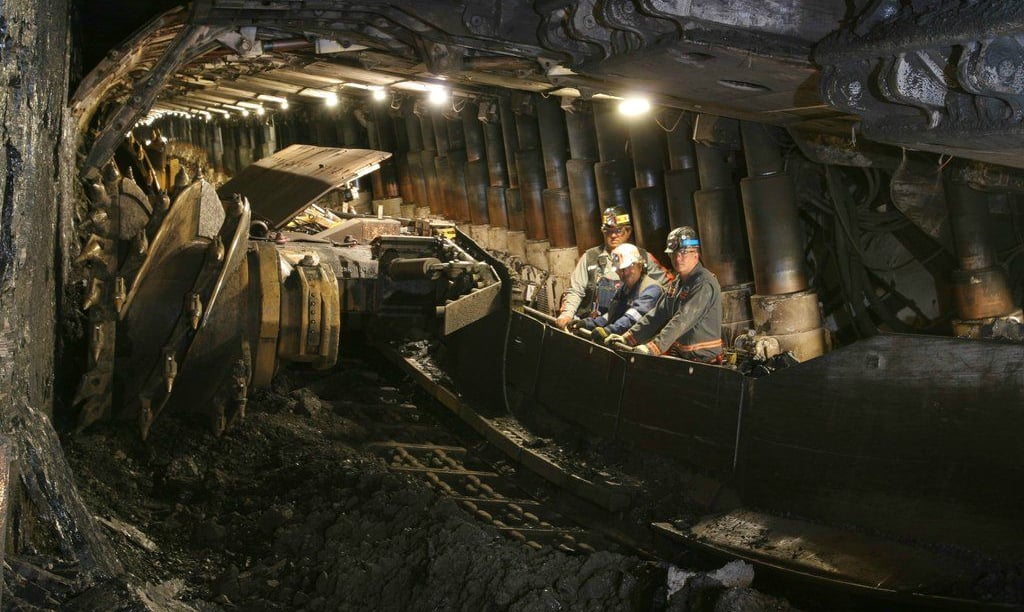

Coal shearer power supply represents one of the primary applications for this specialized cable. Coal shearers operate as mobile cutting machines that traverse coal faces, requiring continuous power while moving along the working area. The cable must maintain reliable electrical connection while being dragged behind the shearer, often through challenging terrain with debris, moisture, and varying temperatures. The free trailing design of the (Z) NSSHKCGEOEU cable ensures that power supply remains uninterrupted during these critical cutting operations, supporting the high-power requirements of modern shearer equipment.

Roadheader operations present another significant application area for this power supply connection cable for mobile equipment. Roadheaders serve as versatile excavation machines used for tunnel development and coal extraction in underground mines. These machines require substantial electrical power for their cutting heads, conveyor systems, and hydraulic components. The cable must withstand the dynamic stresses associated with the roadheader's movement through tunnels while maintaining electrical integrity under challenging environmental conditions.

Tunnel Boring Machines (TBMs) represent some of the most demanding applications for underground mining cables. These massive machines require continuous power supply while advancing through rock and coal formations, often operating in confined spaces with limited ventilation. The underground coal cutter cable for TBMs, roadheaders, and LHDs must demonstrate exceptional durability and flexibility to accommodate the complex movements and operational requirements of these sophisticated machines.

Scoops, also known as Load-Haul-Dump (LHD) vehicles, constitute another critical application for the (Z) NSSHKCGEOEU cable. These versatile machines perform multiple functions including loading, hauling, and dumping operations throughout underground mine workings. The cable must provide reliable power supply while accommodating the frequent directional changes and varied terrain encountered during LHD operations. The flexible design characteristics of this cable ensure optimal performance across the full range of scoop operations.

Design Features of the (Z) NSSHKCGEOEU Cable

The (Z) NSSHKCGEOEU cable incorporates several advanced design features that distinguish it from conventional industrial cables and make it particularly suitable for underground mining applications. The most significant characteristic is its free trailing operation capability, which represents a fundamental design philosophy that prioritizes flexibility and durability in dynamic operational environments.

The free trailing design allows the cable to be dragged considerable distances behind mobile mining equipment without compromising electrical performance or mechanical integrity. This capability requires careful engineering of the cable's construction, including specialized conductor arrangements, enhanced insulation systems, and protective sheathing designed to resist abrasion and mechanical damage. The cable can withstand the substantial tensile forces generated during trailing operations while maintaining consistent electrical characteristics throughout its service life.

Withstanding long trailing distances during machine movement represents another critical design feature of this flexible coal cutter cable with trailing operation design. The cable construction incorporates high-grade materials and specialized manufacturing techniques that enable it to maintain structural integrity even when subjected to repeated flexing, twisting, and dragging motions. This durability ensures reliable power transmission across extended operational periods without degradation in performance.

The cable's flexibility characteristics result from careful selection of conductor materials and insulation compounds that maintain pliability under varying temperature conditions. The very finely stranded copper conductors, designated as class FS, provide enhanced flexibility compared to standard conductor configurations. This fine stranding reduces fatigue stress on individual conductor strands, extending cable life in applications involving frequent flexing and movement.

Abrasion resistance represents a critical performance characteristic achieved through specialized outer sheath materials and construction techniques. The polychloroprene (PCP) outer sheath incorporates special compounds designed to resist wear from contact with rough surfaces, debris, and chemical exposure common in underground mining environments. This protective layer ensures long-term cable integrity even when subjected to harsh operational conditions.

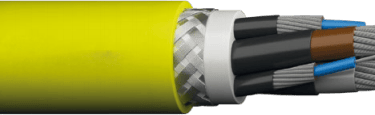

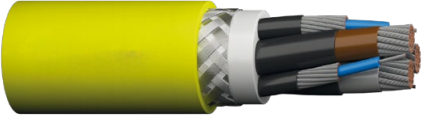

The cable construction includes multiple protective layers, each serving specific functions in ensuring reliable operation. The EPR rubber insulation provides excellent electrical properties while maintaining flexibility across a wide temperature range. Semi-conductive layers ensure uniform electrical field distribution, while the galvanized steel braiding provides mechanical protection and tensile strength necessary for trailing operations.

Technical Advantages in Harsh Environments

Underground mining environments present numerous challenges that require specialized cable solutions capable of maintaining reliable performance under extreme conditions. The (Z) NSSHKCGEOEU cable demonstrates exceptional technical advantages that enable it to operate effectively in these demanding applications, making it a heavy-duty underground mining cable with flame-retardant properties.

High mechanical stress resistance represents one of the most critical technical advantages of this cable design. The construction incorporates galvanized steel braiding that provides exceptional tensile strength, with maximum ratings reaching up to 36,000 N depending on conductor size. This mechanical reinforcement enables the cable to withstand the substantial forces generated during trailing operations while maintaining electrical continuity and structural integrity.

The cable's ability to handle torsional stress up to ±10°/m ensures reliable operation even when subjected to twisting forces common in underground mining applications. This characteristic is particularly important for equipment that may change direction frequently or operate in confined spaces where cable routing presents challenges. The specialized construction materials and manufacturing techniques ensure that the cable maintains its electrical and mechanical properties even under sustained torsional loading.

Flame-retardant properties ensure safe operation in underground mining environments where fire safety represents a paramount concern. The cable complies with EN/IEC 60332-1-2 standards for flame retardancy, incorporating materials and construction techniques that prevent flame propagation and reduce fire hazards. These safety characteristics are essential for underground applications where evacuation options may be limited and fire prevention is critical.

The cable demonstrates exceptional resistance to environmental factors commonly encountered in underground mining operations. Oil resistance ensures reliable operation in environments where hydraulic fluids, lubricants, and other petroleum-based substances may be present. Ozone resistance prevents degradation of cable materials due to electrical discharges and atmospheric conditions. UV resistance protects the cable during storage and handling operations above ground.

Temperature performance represents another significant technical advantage, with the cable designed to operate reliably across a wide temperature range. The maximum conductor temperature rating of 90°C ensures safe operation under high-load conditions, while the cable maintains flexibility and mechanical properties at temperatures as low as -20°C during flexible installation. This temperature range accommodates the varying conditions encountered in underground mining operations.

Chemical resistance properties enable the cable to withstand exposure to acids, bases, and other chemical substances commonly present in mining environments. This resistance prevents degradation of cable materials and ensures long-term reliability even in chemically aggressive conditions. The specialized sheath compounds are formulated to resist chemical attack while maintaining physical and electrical properties.

Long service life in mining conditions results from the combination of these technical advantages and the high-quality materials used in cable construction. The cable is engineered to provide extended operational life, reducing maintenance requirements and minimizing operational disruptions. This reliability is particularly important in underground mining applications where cable replacement can be challenging and costly.

Why Choose the (Z) NSSHKCGEOEU 0.6/1 kV Cable?

The selection of appropriate cable solutions for underground mining applications requires careful consideration of multiple factors including safety, reliability, performance, and economic considerations. The (Z) NSSHKCGEOEU 0.6/1 kV cable represents the best coal cutter cable for underground mining applications based on its comprehensive set of advantages and proven performance characteristics.

Enhanced durability stands as a primary advantage that distinguishes this cable from conventional alternatives. The specialized construction techniques and high-grade materials ensure exceptional resistance to mechanical damage, environmental degradation, and operational stress. This durability translates directly into reduced maintenance requirements, lower replacement costs, and improved operational reliability for mining operations.

The cable's safety characteristics provide significant advantages for underground mining applications where worker safety represents the highest priority. Flame-retardant properties reduce fire risks, while the robust construction minimizes the likelihood of electrical faults that could create safety hazards. The cable's ability to maintain electrical integrity under harsh conditions ensures consistent power supply to safety-critical equipment and systems.

Reliable power supply connection for mobile mining equipment represents a fundamental requirement that this cable satisfies through its specialized design features. The free trailing capability ensures uninterrupted power transmission during equipment movement, while the high-tensile strength construction prevents cable failures that could disrupt mining operations. This reliability is essential for maintaining productivity and meeting operational targets in competitive mining environments.

Compliance with underground mining standards ensures that the cable meets the stringent requirements established for mining applications. The cable incorporates certifications including MSHA P-189-4, which demonstrates compliance with Mine Safety and Health Administration standards for underground mining equipment. Additional certifications including BAS (Bosnia-Herzegovina) and EAC ensure international compliance for global mining operations.

Economic advantages result from the cable's extended service life and reduced maintenance requirements. While initial costs may be higher than conventional cables, the total cost of ownership is typically lower due to reduced replacement frequency and maintenance expenses. The cable's reliability also contributes to reduced downtime costs and improved operational efficiency.

The cable's versatility enables its use across multiple applications within a single mining operation, simplifying inventory management and reducing procurement complexity. This flexibility allows mining operators to standardize on a single cable type for various mobile equipment applications, realizing economies of scale and simplifying maintenance procedures.

Performance characteristics ensure optimal power transmission efficiency and electrical reliability throughout the cable's service life. The carefully engineered conductor configuration and insulation system minimize power losses while maintaining consistent electrical properties under varying operating conditions. This performance reliability is essential for modern mining equipment that relies on precise electrical power for optimal operation.

Potential Cable Issues and Solutions

Q: What are the most common failure modes for coal cutter cables in underground mining applications?

A: The most common failure modes include mechanical damage from abrasion and impact, electrical failures due to moisture ingress, conductor fatigue from repeated flexing, and sheath degradation from chemical exposure. The (Z) NSSHKCGEOEU cable addresses these issues through its reinforced construction, enhanced sealing, fine-strand conductor design, and chemical-resistant sheath materials.

Q: How can mining operators minimize cable damage during trailing operations?

A: Proper cable routing, regular inspection procedures, appropriate tensile force management, and adherence to minimum bending radius requirements help minimize damage. The cable's design incorporates a minimum breaking load of 45kN for the steel braid and supports travel speeds up to 150 m/min, providing operational guidelines for safe use.

Q: What maintenance practices are recommended for extending cable life in underground mining environments?

A: Regular visual inspections, electrical testing, proper storage when not in use, and prompt repair of minor damage help extend cable life. The cable's modular construction allows for field repairs using appropriate connection methods including shrink-on, cast-resin, or vulcanization techniques.

Q: How does the cable perform in wet underground conditions?

A: The cable incorporates moisture-resistant materials and construction techniques that prevent water ingress. The EPR insulation and PCP sheath materials provide excellent water resistance, while the sealed construction prevents moisture from compromising electrical performance.

Q: What considerations apply when selecting cable length for specific mining applications?

A: Cable length selection must balance operational requirements with electrical and mechanical considerations. Longer cables may experience higher voltage drop and increased mechanical stress during trailing operations. The cable's electrical parameters include specific resistance values that enable proper length calculations for maintaining acceptable voltage levels at equipment terminals.

Conclusion

The (Z) NSSHKCGEOEU 0.6/1 kV coal cutter cable represents a comprehensive solution for underground mining power supply applications, combining advanced engineering with proven performance characteristics. Its specialized design features, including free trailing capability, high mechanical strength, and environmental resistance, make it an ideal choice for powering mobile mining equipment in demanding underground environments.

Mining operators benefit from the cable's enhanced durability, safety characteristics, and reliable performance, which contribute to improved operational efficiency and reduced total cost of ownership. The cable's compliance with international mining standards and versatility across multiple equipment types further enhance its value proposition for modern mining operations.

The technical advantages demonstrated by this underground mining cable, including its flame-retardant properties, chemical resistance, and mechanical durability, ensure reliable operation even under the most challenging conditions encountered in underground mining environments. These characteristics, combined with its proven performance record, establish the (Z) NSSHKCGEOEU cable as a preferred solution for mining operators seeking reliable, safe, and cost-effective power supply connections for their mobile equipment.

For mining operations prioritizing safety, reliability, and operational efficiency, the (Z) NSSHKCGEOEU 0.6/1 kV cable provides a proven solution that meets the demanding requirements of modern underground mining while delivering the performance and durability necessary for long-term operational success.
