Z10-YMz1Kas mbzh (LSZH) Cable
The Z10-YMz1Kas mbzh (LSZH) Cable is used for industrial applications. Suitable for underground laying and where there is mechanical compulsion.
$2.00
APPLICATION The Z10-YMz1Kas mbzh (LSZH) Cable is used for industrial applications. Suitable for underground laying and where there is mechanical compulsion. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage 3.5kV AC Temperature Rating Maximum Operating: 90ºC Maximum Short-Circuit: 250°C Minimum Bending Radius 15 x overall diameter |

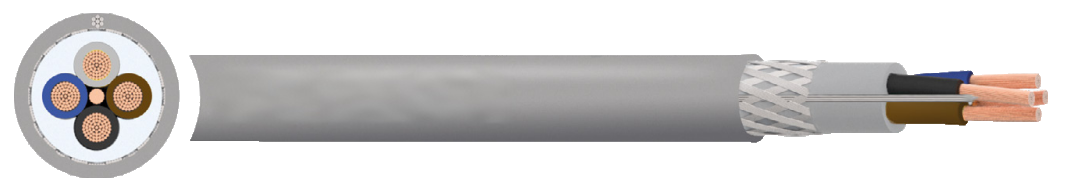

CONSTRUCTION
Conductor
Class 1 Solid copper
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Braiding
GSWB (Galvanized Steel Wire Braid)
Drain Wire
Tinned Copper
Outer Sheath
HFFR (Halogen free flame retardant)
Outer Sheath Colour
Grey
