Z1G-YMz1Kas mbzh (LSZH) Cable
The Z1G-YMz1Kas mbzh (LSZH) cable is used for industrial applications. Suitable for underground laying and where there is mechanical compulsion.
$15.00
APPLICATION The Z1G-YMz1Kas mbzh (LSZH) cable is used for industrial applications. Suitable for underground laying and where there is mechanical compulsion. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage 3.5kV AC Temperature Rating Maximum Operating: 90ºC Maximum Short-Circuit: 250°C Minimum Bending Radius 15 x overall diameter |

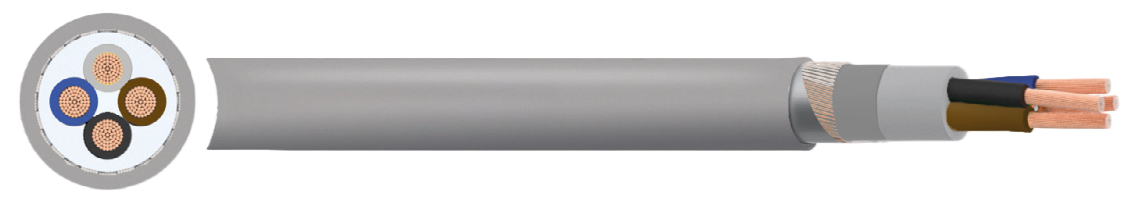

CONSTRUCTION
Conductor
Class 1 Solid copper
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Inner Sheath
HFFR (Halogen free flame retardant)
Armour
Galvanized flat steel wires and flat bare copper wires covered with an open counter spiral of galvanized steel tape
Outer Sheath
HFFR (Halogen free flame retardant)
Outer Sheath Colour
Grey
