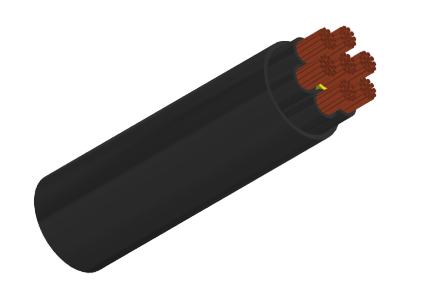

Z1Z1-K(AS)
Cable
Application and Description
These cables are high security cables. In case of fire, they emit limited toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended used in domestic premises, kitchens, offices; or for household appliances, even those in damp places; for medium mechanical stress (e.g. washing machines, refrigerators).
Standards
UNE 21031
EN 60332
EN 60332-1
EN 50268
EN 50267-2
EN 61034
IEC 60332-1
IEC 60332-3
IEC 61034
IEC 60331

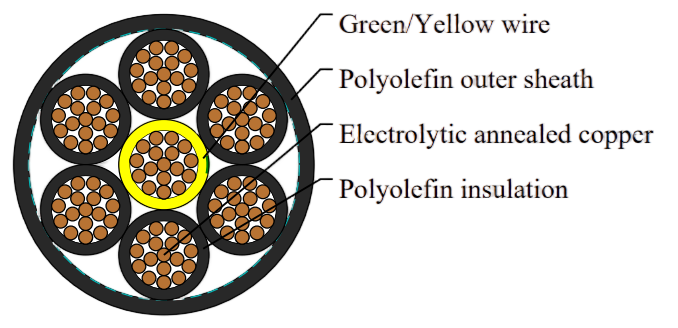

Cable Construction
Flexible electrolytic annealed copper conductor
Class 5 in accordance with IEC 60228
Polyolefin insulation type TI6 according to UNE 21031-14
Color coded to HD 308
FRLSHF polyolefin outer sheath type TI6 according to UNE 21031-14
Technical Characteristics
Working voltage | 300/500 volts; 600/1000volts |
Test voltage | 2000 volts(300/500 volts); 3500 volts(600/1000 volts) |
Minimum bending radius | 5x Ø |
Working temperature | -15°C to +90°C |
Fixed temperature | -40°C to +90°C |
Flame retardant | EN50265-1/EN 60332-1 |
Fire retardant | EN50266-2/IEC 60332-3 |
Halogen-free | EN50267/EN 50267-2-1 |
Low smoke opacity | EN 50268/IEC 61034 |
Low corrosiveness gases | EN 50267-2-2 |
