Comprehensive Technical Guide: Understanding the D12Y11YU11Y Low-Voltage PUR Reeling Cable

Industrial equipment operating in high-stress dynamic environments requires specialized cable engineering. Standard flexible cables frequently fail when subjected to continuous winding, severe abrasion, intense solar radiation, and extreme chemical or environmental exposures.

The Feichun D12Y11YU11Y low-voltage polyurethane (PUR) sheathed reeling cable is engineered specifically to meet these dynamic challenges. Designed for high mechanical stress, rapid spooling, guided dragging, and open-air outdoor exposure, it is an ideal power and control solution for heavy industrial, mining, and maritime applications.

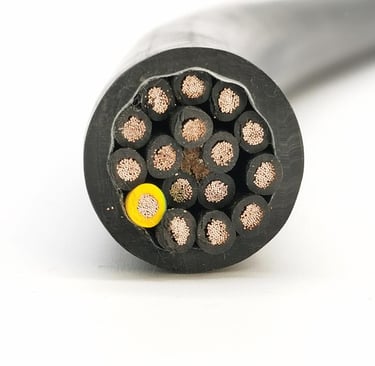

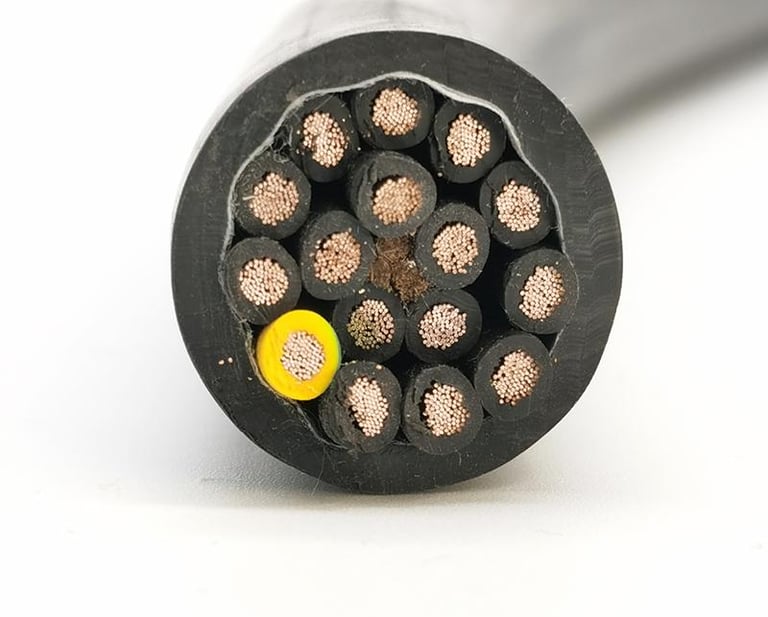

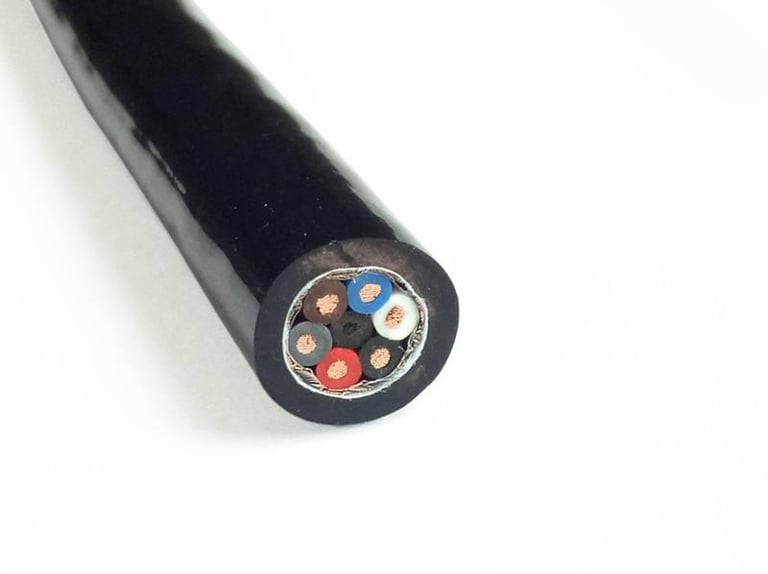

Technical Overview of Cable Layer Architecture

Internal Cable Construction

• Central Tensile Carrier: A high-tensile textile support element positioned at the cable core absorbs longitudinal pulling forces during dynamic winding and unwinding, protecting the electrical conductors from stretch deformation.

• Class 5 Flexible Conductors: Plain flexible copper strands manufactured in accordance with DIN EN 60228 / DIN VDE 0295 Class 5 standards ensure long flex-life under repetitive bending.

• Core Insulation: A halogen-free polyester-based synthetic compound (Y11) provides elevated dielectric strength and thermal endurance.

• Inner Protective Sheath: A halogen-free, flame-retardant polyurethane layer (Y) cushions the core bundle, locking the conductors in place against mechanical compression.

• Anti-Torsion Braid: An open reinforcement braid made of high-tensile textile threads is embedded between the inner and outer sheaths to prevent mechanical twisting (corkscrewing).

• Outer Heavy-Duty Jacket: A tough, opaque black polyurethane sheath (U11Y) offers superior resistance to abrasion, tearing, weather, UV, and chemicals.

1. Introduction: What Is D12Y11YU11Y Cable?

The Feichun D12Y11YU11Y is a low-voltage (0.6/1 kV) flexible reeling cable constructed with a dual polyurethane (PUR) jacketing system. Belonging to Feichun’s premium halogen-free product range, this cable is purpose-built to withstand severe mechanical forces associated with continuous reel-winding, high travel velocities, guided trough dragging, and exposed outdoor environments.

Primary Capabilities

• Continuous Reeling: Maintains structural integrity during rapid spooling and unspooling on motorized or spring-driven cable drums.

• High Travel Speeds: Rated for dynamic linear velocities up to 180 m/min.

• Harsh Outdoor Resilience: Fully UV-stable, weather-resistant, and submersible in non-potable water down to 50 meters depth.

Built for Heavy Machinery

Standard flexible rubber cables often wear down rapidly when dragged across abrasive concrete aprons or operated on fast-cycling drums. The Feichun D12Y11YU11Y is specifically engineered for:

• Port and Shipyard Equipment: Ship-to-Shore (STS) cranes, Rubber-Tyred Gantry (RTG) cranes, Rail-Mounted Gantry (RMG) cranes, and mobile harbour cranes.

• Bulk Material Handling: Mobile stackers, bucket-wheel reclaimers, ship loaders, unloaders, and overland conveyor tripper cars.

• Mining Machinery: Surface mining equipment, mobile crushers, screening plants, and dewatering pump systems.

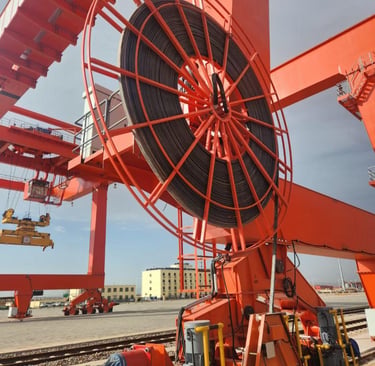

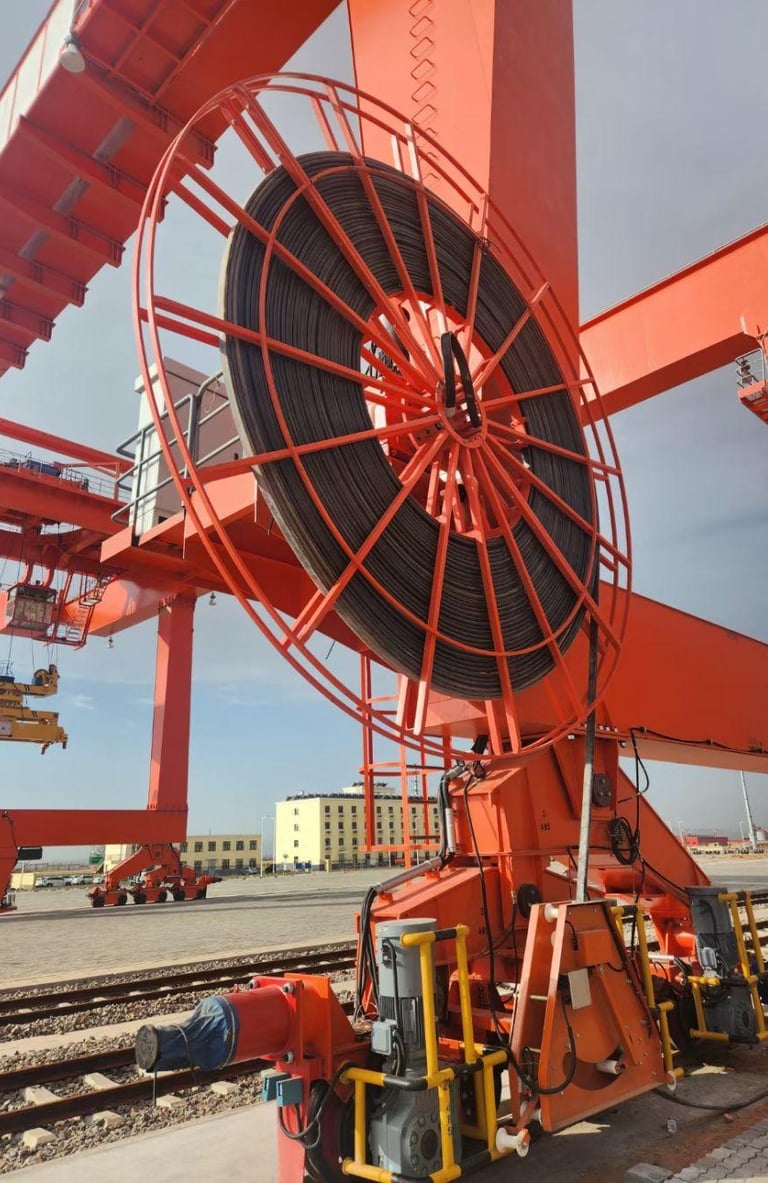

• Industrial Reels: Spring-operated and motorized cable spools across steelworks, container yards, and processing facilities.

2. Type Designation: Decoding the D12Y11YU11Y Code

German VDE cable designations use standardized alpha-numeric codes to describe a cable's internal structure, insulation chemistry, sheath layers, and intended application.

Short Code Breakdown: D12Y11YU11Y

Structural Breakdown by Component

"D" – Design Class

Identifies a specialized flexible construction designed specifically for dynamic low-voltage reeling, trailing, and spooling machinery.

"12" – Series Identification

Represents the designated structural engineering series within Feichun's low-voltage reeling cable portfolio.

"Y11" – Core Insulation Chemistry

Designates a halogen-free polyester-based insulation formula extruded over flexible Class 5 copper conductors, ensuring stable electrical performance up to 90 °C continuous conductor operating temperature.

"Y" – Inner Protective Layer

Specifies a flame-retardant, halogen-free polyurethane inner jacket extruded over the laid-up core assembly. It cushions the conductors and bonds with the central support element.

"U11Y" – Outer Sheath Material

Refers to the outer polyurethane jacket (PUR-Basis). This tough, abrasion-resistant layer shields the cable against external wear, impacts, cut-propagation, oils, and environmental weather.

Electrical & Thermal Specifications

• Nominal Voltage Rating ($U_0/U$): 0.6/1 kV (600/1000 V)

• Maximum Operating AC Voltage: 0.7/1.2 kV

• Maximum Operating DC Voltage: 0.9/1.8 kV

• AC Voltage Test: 4 kV for 5 minutes

• Max Conductor Operating Temperature: 90 °C (continuous)

• Short-Circuit Limit Temperature: 250 °C (maximum duration 5 seconds)

• Flexing Temperature Range: -40 °C to +80 °C

• Fixed Installation Range: -50 °C to +80 °C

3. Polyurethane (PUR) Material Advantages

The choice of jacketing chemistry directly impacts a reeling cable's operational lifespan. The dual-layer PUR system of the Feichun D12Y11YU11Y offers distinct physical and chemical advantages over standard elastomer compounds.

High Wear & Cut Resistance

Continuous dragging over rough ground, gravel, or concrete aprons quickly erodes conventional rubber jackets. Polyurethane exhibits significantly higher tensile strength, tear propagation resistance, and surface hardness than PVC or standard chloroprene rubber. Under continuous dynamic friction, PUR maintains its outer wall integrity, preventing internal core exposure.

Chemical & Oil Stability

In heavy industrial and mining environments, cables regularly come into contact with aggressive liquids. The PUR outer sheath resists:

• Mineral-based gear oils, synthetic hydraulic fluids, and grease sprays.

• Industrial coolants, fuels, and chemical cleaning agents.

• Saline coastal atmospheres, acidic runoff, and mineral-laden mining water.

UV Resistance & Submersion Capability

• Sunlight & Ozone: Formulated with carbon-black stabilization, the opaque black PUR sheath will not dry out, chalk, or crack under intense UV radiation.

• 50-Meter Water Submersion: Tested and rated for continuous underwater operation down to 50 meters depth in non-potable water, making it suited for underground sump pumps, maritime quays, and flooded pit operations.

• Halogen-Free Safety: Fully compliant with IEC 60332-1 flame-retardancy standards. In a fire, it releases zero corrosive halogen gases ($HCl$) and minimal smoke, protecting nearby personnel and sensitive control systems.

4. Engineering Features for Dynamic Stress

Dynamic spooling subjects cables to simultaneous longitudinal tension, torsional twist, tight bending cycles, and rapid acceleration. The internal structure of the Feichun D12Y11YU11Y is built to neutralize these combined forces.

Internal Mechanical Dynamics

The integrated central textile strand absorbs tensile loads, preventing elongation of the copper conductors. Core conductors are wound around the central core in tight lay lengths, minimizing internal strain during tight reverse bending. An open-mesh textile braid locked between the inner and outer PUR jackets transfers shear forces evenly, preventing the cable from twisting out of shape under high speed spooling.

Dynamic Operating Parameters

The maximum tensile strain is rated at 25 N/mm² of total copper conductor cross-section. The permissible torsion angle is up to ± 50 degrees per meter. The minimum bending radius is optimized down to 6 times the outer cable diameter (6 x D), tested in accordance with HD 22.2 Part 3.1. The maximum travel speed reaches up to 180 meters per minute on motorized reel systems and cable tenders.

5. Australian Port & Mining Application Scenarios

Australia’s heavy export infrastructure operates under some of the world's most severe climatic and mechanical conditions—combining extreme ambient temperatures, abrasive mineral dust, high humidity, and intense solar radiation. The Feichun D12Y11YU11Y cable is specially configured for these challenging environments.

Real-World Australian Operational Contexts

Pilbara Iron Ore Export Facilities (e.g., Port Hedland, Dampier, Cape Lambert)

At major iron ore terminals in Western Australia's Pilbara region, rail-mounted stackers, reclaimers, and ship loaders move millions of tonnes of ore annually. The equipment faces ambient summer temperatures exceeding 45 °C, high solar UV indexes, airborne abrasive iron ore dust, and rapid continuous spooling on long-travel motor reels. The cable's 90 °C continuous conductor thermal rating, UV-stabilized PUR jacket, and 180 m/min travel speed capability prevent jacket thermal softening and premature surface wear caused by iron ore dust friction.

Open-Cut Coal Terminals & Pit Operations (e.g., Bowen Basin, Hunter Valley, Port of Newcastle)

Coal handling equipment and mobile dewatering pumps operate continuously in moist, dusty, and mechanically demanding pits and export terminals like Hay Point and Newcastle. Challenges include high drag friction over rocky substrates, constant exposure to acidic pit water, and dynamic tension spikes during rapid reel reversal. With its 25 N/mm² tensile strength capacity, anti-torsion reinforcement braid, and 50-meter water submersion rating, the cable withstands severe drag tension and wet pit conditions without water ingress or corkscrewing.

Container Terminals (e.g., Port Botany Sydney, Port of Brisbane, Port of Melbourne)

Automated stacking cranes (ASCs) and Rubber-Tyred Gantry (RTG) cranes require compact, fast-responding low-voltage power and control cables. They operate under limited drum spool width, rapid acceleration cycles, sea-spray salinity, and continuous flexure. The cable’s compact outer diameter, light weight, and 6 x D minimum bending radius allow port operators to fit longer cable lengths on smaller reel drums while maintaining smooth acceleration.

6. Performance Comparison: PUR vs. Conventional Rubber Cables

When selecting reeling cables for heavy industrial equipment, specifiers frequently evaluate Polyurethane (PUR) against traditional heavy-duty rubber cables, such as chloroprene or EPR-based NSHTOEU types.

The outer sheath chemistry of PUR provides higher mechanical toughness and abrasion resistance compared to synthetic chloroprene rubber.

The maximum permissible tensile load for the Feichun PUR cable is 25 N/mm², providing a 66% higher tensile margin under shock loads compared to standard rubber cables rated at 15 N/mm².

The PUR cable supports travel speeds up to 180 meters per minute, whereas standard rubber cables are typically limited to 120 meters per minute, making PUR better suited for modern automated machinery.

The PUR cable offers a tight minimum bending radius of 6 times the outer diameter, enabling the use of smaller reel drum diameters and more compact spooling configurations.

While standard rubber cables are designed only for surface moisture resistance, the Feichun PUR cable is rated for continuous underwater submersion down to 50 meters depth.

The Feichun D12Y11YU11Y is 100% halogen-free, avoiding the toxic acid gas release associated with chloroprene rubber cables during thermal events.

Finally, the PUR cable features a more compact outer diameter and lighter weight, which significantly reduces drive motor torque requirements and total reel loading.

7. Dynamic Dimensional Data & Technical Overview

Below is the detailed dimensional and physical performance data for popular core configurations of the Feichun D12Y11YU11Y cable series:

For the 4 x 1.5 mm² core size, the outer diameter ranges from 10.0 to 11.2 mm, with a minimum bending radius of 67 mm, an approximate weight of 150 kg/km, and a maximum permissible tensile force of 150 N.

For the 4 x 2.5 mm² core size, the outer diameter ranges from 11.1 to 12.2 mm, with a minimum bending radius of 74 mm, an approximate weight of 200 kg/km, and a maximum permissible tensile force of 250 N.

For the 4 x 6 mm² core size, the outer diameter ranges from 14.1 to 15.2 mm, with a minimum bending radius of 92 mm, an approximate weight of 370 kg/km, and a maximum permissible tensile force of 600 N.

For the 4 x 16 mm² core size, the outer diameter ranges from 20.0 to 21.4 mm, with a minimum bending radius of 128 mm, an approximate weight of 850 kg/km, and a maximum permissible tensile force of 1600 N.

For the 4 x 25 mm² core size, the outer diameter ranges from 23.5 to 24.9 mm, with a minimum bending radius of 149 mm, an approximate weight of 1230 kg/km, and a maximum permissible tensile force of 2500 N.

For the 4 x 35 mm² core size, the outer diameter ranges from 28.5 to 30.2 mm, with a minimum bending radius of 181 mm, an approximate weight of 1760 kg/km, and a maximum permissible tensile force of 3500 N.

For the 7 x 1.5 mm² core size, the outer diameter ranges from 12.0 to 13.2 mm, with a minimum bending radius of 79 mm, an approximate weight of 230 kg/km, and a maximum permissible tensile force of 260 N.

For the 12 x 1.5 mm² core size, the outer diameter ranges from 15.5 to 16.7 mm, with a minimum bending radius of 100 mm, an approximate weight of 360 kg/km, and a maximum permissible tensile force of 450 N.

For the 24 x 1.5 mm² core size, the outer diameter ranges from 19.0 to 20.2 mm, with a minimum bending radius of 121 mm, an approximate weight of 600 kg/km, and a maximum permissible tensile force of 900 N.

For the 30 x 1.5 mm² core size, the outer diameter ranges from 21.1 to 22.5 mm, with a minimum bending radius of 135 mm, an approximate weight of 750 kg/km, and a maximum permissible tensile force of 1120 N.

8. Step-by-Step Cable Selection Guide

Follow these steps when engineering and specifying the Feichun D12Y11YU11Y cable for dynamic reel installations:

First, verify electrical demand and core configuration. Confirm that operating voltage fits within 0.6/1 kV (maximum 0.7/1.2 kV AC). Determine the required power or control core count, such as 4-core power or multi-core control. Select the ground core configuration, using D12Y11YU11Y-J for designs including a green and yellow earth core, or D12Y11YU11Y-O for designs without an earth core.

Second, evaluate dynamic reel mechanics. Check the maximum machine travel velocity to ensure it does not exceed 180 meters per minute. Calculate the peak tensile load to confirm that pulling force does not exceed 25 N/mm² of total copper conductor cross-section. Verify that the reel drum flange diameter complies with the minimum bending radius requirement of 6 times the outer diameter.

Third, confirm environmental factors. Identify any exposure to mineral oils, hydraulic fluids, UV radiation, or salt air. Determine whether continuous submersion is required, as the cable is rated down to 50 meters depth. Finally, verify that site ambient temperatures remain within the flexing operating window of -40 °C to +80 °C.

Quick Reference Technical Summary

The product series includes Feichun D12Y11YU11Y-J (with earth core) and D12Y11YU11Y-O (without earth core).

The voltage rating (U0/U) is 0.6/1 kV (600/1000 V).

The conductor is Class 5 flexible bare copper according to DIN EN 60228.

Core insulation is made of a halogen-free polyester synthetic compound (Y11).

The sheath system consists of an inner PUR sheath, an anti-torsion textile braid, and an outer heavy-duty PUR sheath.

The maximum travel speed is 180 meters per minute, with a maximum tensile capacity of 25 N/mm².

The minimum bending radius is 6 times the cable outer diameter (6 x D).

The flexing operating temperature range spans from -40 °C to +80 °C.

The submersion rating permits continuous operation down to 50 meters depth in water.

The cable is 100% halogen-free and flame retardant in accordance with IEC 60332-1.
