Introduction
In modern materials handling, automated manufacturing, and heavy lifting, electrical equipment relies on power and signal lines that can endure constant motion. Unlike fixed power cables installed inside conduit or cable trays, cabling fitted to dynamic machinery must withstand millions of flexing cycles, dynamic tension, dynamic acceleration, and physical wear without breaking down.
When equipment moves rapidly along a fixed track—such as an overhead gantry crane in a shipping terminal, a traveling trolley on a mining conveyor, or a high-speed machine tool—it needs specialized trailing cables. Among the dynamic cabling choices available to project engineers, the FESTOONFLEX C-PUR-HF D12YC11Y cable represents a top-tier design for severe-duty festoon systems.
The FESTOONFLEX C-PUR-HF D12YC11Y is a low-voltage screened round cable equipped with a polyurethane (PUR) outer sheath, engineered specifically for high-speed festoon applications and dynamic industrial environments. Designed for applications involving frequent bending, rapid linear movement, and exposure to electromagnetic interference (EMI), this specialized control and power cable provides long-term reliability where standard flexible cables quickly fail.
Industrial operators across Australia and regional Asia-Pacific hubs face challenging site conditions: extreme ultraviolet radiation, high summer heat, coastal saltwater mist, and fine abrasive mineral dust. Sourcing high-specification dynamic cables—such as those engineered by Feichun—ensures equipment stays reliable, minimizes unplanned downtime, and maintains overall site safety.
This comprehensive technical guide explains the designation, multi-layer construction, electrical ratings, dynamic mechanical characteristics, and real-world industrial applications of the D12YC11Y cable family.
Model Designation Meaning
Deciphering international cable designations helps engineers select the right product for specific mechanical and environmental demands. The product name FESTOONFLEX C-PUR-HF D12YC11Y follows standardized European naming conventions used in German DIN and VDE standards:
FESTOONFLEX: Indicates the cable's primary design purpose: continuous dynamic movement within festoon systems, dynamic loops, and cable carrier trolleys.
C Designation: Denotes an integrated copper wire braid screen, providing continuous electromagnetic shielding for sensitive control and signal transmission.
PUR Sheath: Highlights the polyurethane outer jacket, which offers high resistance to abrasion, tearing, oils, and environmental wear.
HF Designation: Confirms that the cable is completely halogen-free, reducing toxic fumes and acidic gas emissions during a fire.
D12YC11Y Designation: The official VDE-aligned structural code for this design:
D: Identifies a custom heavy-duty dynamic cable layout built for rapid flexing.
12Y: Refers to the halogen-free polyester-based insulation surrounding the internal copper conductors.
C: Confirms the tinned copper wire braid screen.
11Y: Indicates the rugged polyurethane outer sheath.
-J / -O Suffixes: -J denotes the inclusion of a green/yellow protective earth conductor, whereas -O indicates a construction without an earth core.
While individual manufacturer codes can vary slightly across product catalogs, the practical meaning of D12YC11Y remains consistent: a halogen-free, screened round cable with a PUR jacket built for severe dynamic festoon duty.

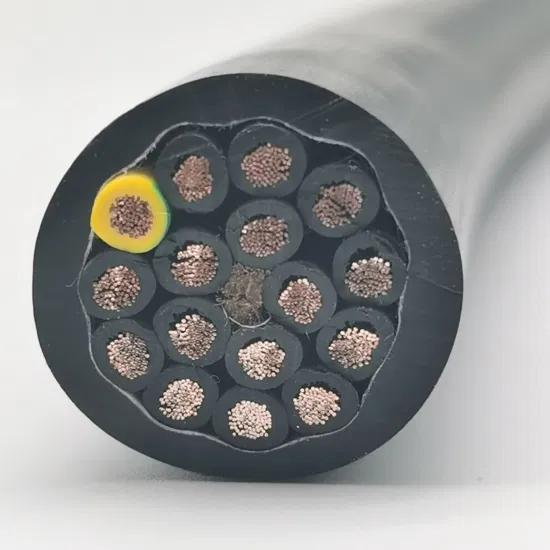

Construction Overview
The structural durability of the FESTOONFLEX C-PUR-HF D12YC11Y cable comes from its engineered multi-layer construction. Every layer—from the conductor stranding to the outer PUR jacket—helps handle physical stress while maintaining steady electrical performance.
Conductor
The conductor uses plain copper wire fine-stranded to Class 5 flexibility standards, in accordance with DIN EN 60228 and DIN VDE 0295. Fine stranding is essential for festoon cabling:
It distributes bending stresses evenly across hundreds of micro-wires rather than a few thick copper strands.
It prevents metal fatigue and conductor snapping during fast dynamic movement.
It keeps the cable supple, lowering the mechanical force required to flex it across festoon loops and trolley tracks.
Core Insulation
The conductors are insulated with a high-grade, halogen-free compound based on polyester. This material offers key technical advantages:
Excellent dielectric strength for reliable electrical performance up to 0.6/1 kV rated operating voltage.
High thermal resistance, supporting continuous conductor operating temperatures up to 90°C.
Halogen-free properties, ensuring low smoke generation and zero corrosive gas emissions during thermal overload or fire events.
Core Identification and Core Lay-Up
Core identification follows clear standard color conventions:
Configurations up to 5 cores: Color-coded according to DIN VDE 0293-308.
Configurations with 6 or more cores: Natural white insulation with bold black numbers printed sequentially, accompanied by a green/yellow earth core in -J variants.
To maximize flex life, the insulated cores (or core pairs) are laid up around a central strain relief support element using a extra-short length of lay. Short-lay twisting balances internal stresses during bending, keeping the cable round and preventing core displacement or "corkscrewing" over thousands of dynamic cycles.
Inner Sheath and Electromagnetic Shielding
Depending on the core count and cross-sectional area, certain cable sizes feature a specialized polyurethane inner sheath to provide structural uniformity.
Over this inner layer, a high-density braid screen made from tinned copper wires is applied. This braid provides crucial functions:
EMC Protection: Shields delicate control, data, and analog sensor signals from external electromagnetic interference generated by nearby variable speed drives, high-voltage equipment, or heavy electric motors.
Signal Integrity: Prevents cross-talk between adjacent power conductors and low-voltage control circuits within automated machinery.
Mechanical Stability: Reinforces the internal core bundle, preserving structural alignment during dynamic movement.
Polyurethane (PUR) Outer Sheath
The outermost layer consists of a high-performance black Polyurethane (PUR) compound that is halogen-free, opaque, and flame-retardant. Polyurethane jackets outperform standard PVC and standard rubber sheaths in tough dynamic applications:
Extreme Abrasion Resistance: Resists surface wear from continuous dragging, trolley contact, and cable tray friction.
Tear and Cut Growth Resistance: Prevents small surface nicks from spreading into larger splits, protecting internal layers.
Chemical and Hydrocarbon Immunity: Resists degradation from industrial lubricants, cutting oils, hydraulic fluids, and chemical splash.
Weathering and UV Protection: Withstands direct sunlight and ozone exposure without cracking or hardening over long outdoor deployments.
Electrical Properties
The FESTOONFLEX C-PUR-HF D12YC11Y family delivers high electrical performance for heavy-duty power and control systems:
Nominal Rated Operating Voltage (Uo/U): 0.6 / 1 kV (600 / 1000 Volts AC).
Maximum Permissible AC Operating Voltage: 0.7 / 1.2 kV AC.
Maximum Permissible DC Operating Voltage: 0.9 / 1.8 kV DC.
Alternating Current Test Voltage: High-voltage factory testing at 4 kV AC for 5 minutes, ensuring insulation soundness.
Current-Carrying Capacity: Rated according to DIN VDE 0298-4 standards, establishing safe thermal current limits based on core grouping, ambient temperature, and duty cycle.
These electrical parameters allow the D12YC11Y cable to perform reliably as a main power feed for heavy drives or as a screened control line for automated machinery.
Thermal, Chemical, and Environmental Performance
Heavy industrial sites subject power and control cabling to severe thermal and chemical conditions. The FESTOONFLEX C-PUR-HF D12YC11Y is built to perform across wide temperature ranges and in demanding environments:
Maximum Permissible Conductor Operating Temperature: +90°C during continuous service.
Maximum Short-Circuit Conductor Temperature: Up to +250°C (for short-circuit durations up to 5 seconds).
Ambient Temperature Range (Fixed / Static Installation): -50°C to +80°C.
Ambient Temperature Range (Fully Flexible Dynamic Operation): -40°C to +80°C.
Fire Performance Rating: Flame-retardant, tested in line with IEC 60332-1 standards.
Submersion and Water Resistance: Rated for continuous underwater submersion down to 50 meters diving depth (in non-drinking water). This makes the cable suitable for flooded mine shafts, wet port facilities, and outdoor industrial sumps.
Mechanical Performance and Dynamic Ratings
The main advantage of the FESTOONFLEX C-PUR-HF D12YC11Y is its ability to handle continuous mechanical movement.
Maximum Permissible Conductor Tensile Load: 15 N/mm² of total copper cross-sectional area during motion. Keeping tensile force within this limit prevents conductor stretching and necking.
Torsional Stress Limit: Torsional twisting is strictly not allowed. The cable is engineered for linear bending across festoons and energy chains; forcing it to twist axially will damage the braid screen and core lay.
Minimum Dynamic Bending Radius: 6 times the overall cable outer diameter (6 x D), verified through continuous flex testing per HD 22.2 part 3.1 specifications.
Maximum Operating Travel Speed:
In Festoon Systems: High-speed travel up to 210 meters per minute.
In Cable Carrier Chain Systems: Travel speeds up to 210 meters per minute. (Note: Long travel chain systems should adjust speed based on total chain length, guide support, and acceleration profiles to maximize service life).

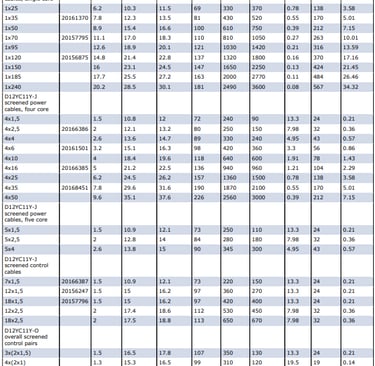

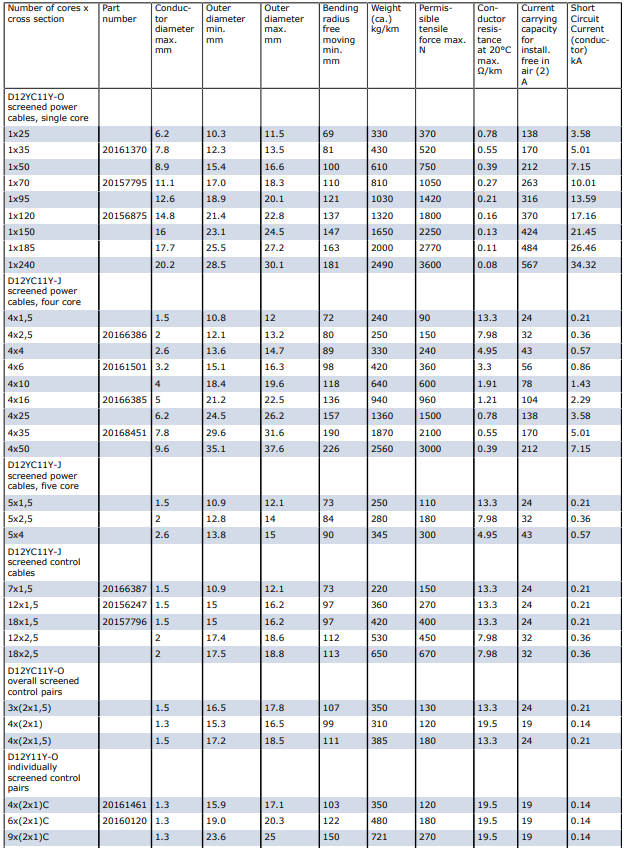

Cable Dimensions, Weights, and Technical Specs
The D12YC11Y cable line covers a broad range of conductor sizes and core counts to support various power and control requirements. The details below highlight physical dimensions, conductor resistance values, and current-carrying capacities across standard configurations:
Single-Core Screened Power Cables (D12YC11Y-O)
1 x 25 mm²: Outer diameter range 10.3 mm to 11.5 mm, minimum flex radius 69 mm, nominal weight 330 kg/km, maximum tensile force 370 N, max resistance 0.78 Ω/km, air current rating 138 A, short-circuit current rating 3.58 kA.
1 x 35 mm²: Outer diameter range 12.3 mm to 13.5 mm, minimum flex radius 81 mm, nominal weight 430 kg/km, maximum tensile force 520 N, max resistance 0.55 Ω/km, air current rating 170 A, short-circuit current rating 5.01 kA.
1 x 50 mm²: Outer diameter range 15.4 mm to 16.6 mm, minimum flex radius 100 mm, nominal weight 610 kg/km, maximum tensile force 750 N, max resistance 0.39 Ω/km, air current rating 212 A, short-circuit current rating 7.15 kA.
1 x 70 mm²: Outer diameter range 17.0 mm to 18.3 mm, minimum flex radius 110 mm, nominal weight 810 kg/km, maximum tensile force 1050 N, max resistance 0.27 Ω/km, air current rating 263 A, short-circuit current rating 10.01 kA.
1 x 95 mm²: Outer diameter range 18.9 mm to 20.1 mm, minimum flex radius 121 mm, nominal weight 1030 kg/km, maximum tensile force 1420 N, max resistance 0.21 Ω/km, air current rating 316 A, short-circuit current rating 13.59 kA.
1 x 120 mm²: Outer diameter range 21.4 mm to 22.8 mm, minimum flex radius 137 mm, nominal weight 1320 kg/km, maximum tensile force 1800 N, max resistance 0.16 Ω/km, air current rating 370 A, short-circuit current rating 17.16 kA.
1 x 150 mm²: Outer diameter range 23.1 mm to 24.5 mm, minimum flex radius 147 mm, nominal weight 1650 kg/km, maximum tensile force 2250 N, max resistance 0.13 Ω/km, air current rating 424 A, short-circuit current rating 21.45 kA.
1 x 185 mm²: Outer diameter range 25.5 mm to 27.2 mm, minimum flex radius 163 mm, nominal weight 2000 kg/km, maximum tensile force 2770 N, max resistance 0.11 Ω/km, air current rating 484 A, short-circuit current rating 26.46 kA.
1 x 240 mm²: Outer diameter range 28.5 mm to 30.1 mm, minimum flex radius 181 mm, nominal weight 2490 kg/km, maximum tensile force 3600 N, max resistance 0.08 Ω/km, air current rating 567 A, short-circuit current rating 34.32 kA.
Four-Core Screened Power Cables (D12YC11Y-J)
4 x 1.5 mm²: Outer diameter range 10.8 mm to 12.0 mm, minimum flex radius 72 mm, nominal weight 240 kg/km, maximum tensile force 90 N, max resistance 13.3 Ω/km, air current rating 24 A, short-circuit current rating 0.21 kA.
4 x 2.5 mm²: Outer diameter range 12.1 mm to 13.2 mm, minimum flex radius 80 mm, nominal weight 250 kg/km, maximum tensile force 150 N, max resistance 7.98 Ω/km, air current rating 32 A, short-circuit current rating 0.36 kA.
4 x 4.0 mm²: Outer diameter range 13.6 mm to 14.7 mm, minimum flex radius 89 mm, nominal weight 330 kg/km, maximum tensile force 240 N, max resistance 4.95 Ω/km, air current rating 43 A, short-circuit current rating 0.57 kA.
4 x 6.0 mm²: Outer diameter range 15.1 mm to 16.3 mm, minimum flex radius 98 mm, nominal weight 420 kg/km, maximum tensile force 360 N, max resistance 3.30 Ω/km, air current rating 56 A, short-circuit current rating 0.86 kA.
4 x 10 mm²: Outer diameter range 18.4 mm to 19.6 mm, minimum flex radius 118 mm, nominal weight 640 kg/km, maximum tensile force 600 N, max resistance 1.91 Ω/km, air current rating 78 A, short-circuit current rating 1.43 kA.
4 x 16 mm²: Outer diameter range 21.2 mm to 22.5 mm, minimum flex radius 136 mm, nominal weight 940 kg/km, maximum tensile force 960 N, max resistance 1.21 Ω/km, air current rating 104 A, short-circuit current rating 2.29 kA.
4 x 25 mm²: Outer diameter range 24.5 mm to 26.2 mm, minimum flex radius 157 mm, nominal weight 1360 kg/km, maximum tensile force 1500 N, max resistance 0.78 Ω/km, air current rating 138 A, short-circuit current rating 3.58 kA.
4 x 35 mm²: Outer diameter range 29.6 mm to 31.6 mm, minimum flex radius 190 mm, nominal weight 1870 kg/km, maximum tensile force 2100 N, max resistance 0.55 Ω/km, air current rating 170 A, short-circuit current rating 5.01 kA.
4 x 50 mm²: Outer diameter range 35.1 mm to 37.6 mm, minimum flex radius 226 mm, nominal weight 2560 kg/km, maximum tensile force 3000 N, max resistance 0.39 Ω/km, air current rating 212 A, short-circuit current rating 7.15 kA.
Five-Core Screened Power Cables (D12YC11Y-J)
5 x 1.5 mm²: Outer diameter range 10.9 mm to 12.1 mm, minimum flex radius 73 mm, nominal weight 250 kg/km, maximum tensile force 110 N, max resistance 13.3 Ω/km, air current rating 24 A, short-circuit current rating 0.21 kA.
5 x 2.5 mm²: Outer diameter range 12.8 mm to 14.0 mm, minimum flex radius 84 mm, nominal weight 280 kg/km, maximum tensile force 180 N, max resistance 7.98 Ω/km, air current rating 32 A, short-circuit current rating 0.36 kA.
5 x 4.0 mm²: Outer diameter range 13.8 mm to 15.0 mm, minimum flex radius 90 mm, nominal weight 345 kg/km, maximum tensile force 300 N, max resistance 4.95 Ω/km, air current rating 43 A, short-circuit current rating 0.57 kA.
Multi-Core Screened Control Cables (D12YC11Y-J)
7 x 1.5 mm²: Outer diameter range 10.9 mm to 12.1 mm, minimum flex radius 73 mm, nominal weight 220 kg/km, maximum tensile force 150 N, max resistance 13.3 Ω/km, air current rating 24 A, short-circuit current rating 0.21 kA.
12 x 1.5 mm²: Outer diameter range 15.0 mm to 16.2 mm, minimum flex radius 97 mm, nominal weight 360 kg/km, maximum tensile force 270 N, max resistance 13.3 Ω/km, air current rating 24 A, short-circuit current rating 0.21 kA.
18 x 1.5 mm²: Outer diameter range 15.0 mm to 16.2 mm, minimum flex radius 97 mm, nominal weight 420 kg/km, maximum tensile force 400 N, max resistance 13.3 Ω/km, air current rating 24 A, short-circuit current rating 0.21 kA.
12 x 2.5 mm²: Outer diameter range 17.4 mm to 18.6 mm, minimum flex radius 112 mm, nominal weight 530 kg/km, maximum tensile force 450 N, max resistance 7.98 Ω/km, air current rating 32 A, short-circuit current rating 0.36 kA.
18 x 2.5 mm²: Outer diameter range 17.5 mm to 18.8 mm, minimum flex radius 113 mm, nominal weight 650 kg/km, maximum tensile force 670 N, max resistance 7.98 Ω/km, air current rating 32 A, short-circuit current rating 0.36 kA.
Overall and Individually Screened Control Pairs (D12YC11Y-O / D12Y11Y-O)
3 x (2 x 1.5) mm² Overall Screened: Outer diameter range 16.5 mm to 17.8 mm, minimum flex radius 107 mm, nominal weight 350 kg/km, maximum tensile force 130 N, max resistance 13.3 Ω/km, air current rating 24 A, short-circuit current rating 0.21 kA.
4 x (2 x 1.0) mm² Overall Screened: Outer diameter range 15.3 mm to 16.5 mm, minimum flex radius 99 mm, nominal weight 310 kg/km, maximum tensile force 120 N, max resistance 19.5 Ω/km, air current rating 19 A, short-circuit current rating 0.14 kA.
4 x (2 x 1.5) mm² Overall Screened: Outer diameter range 17.2 mm to 18.5 mm, minimum flex radius 111 mm, nominal weight 385 kg/km, maximum tensile force 180 N, max resistance 13.3 Ω/km, air current rating 24 A, short-circuit current rating 0.21 kA.
4 x (2 x 1.0) mm² Individually Screened Pairs: Outer diameter range 15.9 mm to 17.1 mm, minimum flex radius 103 mm, nominal weight 350 kg/km, maximum tensile force 120 N, max resistance 19.5 Ω/km, air current rating 19 A, short-circuit current rating 0.14 kA.
6 x (2 x 1.0) mm² Individually Screened Pairs: Outer diameter range 19.0 mm to 20.3 mm, minimum flex radius 122 mm, nominal weight 480 kg/km, maximum tensile force 180 N, max resistance 19.5 Ω/km, air current rating 19 A, short-circuit current rating 0.14 kA.
9 x (2 x 1.0) mm² Individually Screened Pairs: Outer diameter range 23.6 mm to 25.0 mm, minimum flex radius 150 mm, nominal weight 721 kg/km, maximum tensile force 270 N, max resistance 19.5 Ω/km, air current rating 19 A, short-circuit current rating 0.14 kA.
Performance Advantages: Why This Construction Works
The FESTOONFLEX C-PUR-HF D12YC11Y combines several design features that solve common operational issues in dynamic control and power applications:
High EMC Protection for Variable Speed Drives
Modern industrial cranes and automated material handlers rely on variable speed drives (VSDs) and digital feedback sensors. VSDs generate significant high-frequency electrical noise that can interfere with unshielded control cabling. The tinned copper braid screen in D12YC11Y provides continuous 360-degree shielding, containing internal drive harmonics and preventing external noise from disrupting sensitive signals.
Small Diameter and Reduced Weight
Polyurethane (PUR) offers higher tensile strength and tear resistance than traditional rubber compounds. This allows manufacturers like Feichun to use a thinner outer jacket without compromising physical protection. The result is a smaller overall outer diameter and lower total cable weight, which provides clear operational benefits:
Reduces hanging loop weight on long festoon installations.
Allows smaller towing trolleys, compact storage saddles, and lighter drive motors.
Fits more cables into tight cable carrier tracks.
Submersible Water Resistance
Unlike standard industrial flexible cables that degrade when exposed to moisture, the D12YC11Y is rated for continuous underwater submersion up to 50 meters depth. This level of water resistance prevents jacket breakdown in outdoor facilities subject to flooding, heavy rain, or marine immersion.
Suitability for the Australian Industrial Environment
Australia's industrial operations face harsh environmental conditions that test equipment durability. Cabling installed outdoors across Australia must withstand extreme sun, intense UV radiation, heat, and abrasive dust.
+-------------------------------------------------------------------+ | AUSTRALIAN SITE OPERATING CHALLENGES | +-------------------------------------------------------------------+ | [ Extreme UV Solar Radiation ] [ Coastal & Marine Salt Mist ] | | - Accelerated surface cracking - Rapid copper oxidation | | - Jacket breakdown in outdoor sun - Earth fault risks | | | | [ Fine Abrasive Mineral Dust ] [ Tropical Rain & Submersion ] | | - Iron ore & coal dust grinds - Flooded cable pits | | - Rapid sheath abrasion - Water ingress into insulation| +-------------------------------------------------------------------+ | v +-------------------------------------------------------------------+ | FEICHUN D12YC11Y ENGINEERING SOLUTIONS | +-------------------------------------------------------------------+ | UV-Stabilized PUR Sheath: Prevents sun cracking and weathering | | Tinned Braid + Tight Jacket: Seals out moisture and salt air | | Cut-Resistant Polyurethane: Resists wear from abrasive dust | | Submersible to 50 m: Maintains integrity in flooded cable pits | +-------------------------------------------------------------------+
Here is how the FESTOONFLEX C-PUR-HF D12YC11Y design addresses key Australian operating conditions:
Port Infrastructure and Intermodal Freight Hubs
Port terminals in Brisbane, Sydney, Melbourne, and Fremantle rely on high-speed container cranes, rail-mounted gantry cranes (RMG), and automated stacking cranes (ASC).
The Problem: Marine salt spray and high coastal humidity can corrode copper conductors, while rapid festoon travel causes heavy jacket wear.
The Solution: The PUR jacket's extreme abrasion resistance withstands continuous trolley travel at speeds up to 210 m/min. Its water-impermeable design seals out coastal salt mist, preventing moisture ingress and insulation breakdowns.
Open-Cut Mining and Bulk Export Terminals
Bulk commodity terminals in the Pilbara and Gladstone handle millions of tonnes of iron ore, coal, and bauxite. Equipment like stackers, reclaimers, shiploaders, and conveyor trippers operate continuously in dusty environments.
The Problem: Highly abrasive mineral dust gets trapped in festoon saddles and drag chains, wearing down standard rubber or PVC cable jackets like sandpaper.
The Solution: The polyurethane outer jacket offers exceptional tear and cut-growth resistance, preventing fine mineral dust from grinding through the outer sheath.
Outdoor Manufacturing and High-UV Operations
Across inland Australia, summer solar exposure can push outdoor metal surfaces above +60°C, while intense UV rays quickly degrade low-grade plastics.
The Problem: Standard PVC cables exposed to intense sunlight harden, crack, and lose their flexible properties, allowing water to reach internal conductors.
The Solution: The UV-stabilized, halogen-free PUR outer sheath resists solar radiation and handles ambient temperatures from -40°C up to +80°C in continuous dynamic service, ensuring long life under the Australian sun.
Primary Application Areas
The FESTOONFLEX C-PUR-HF D12YC11Y cable is widely used across dynamic industrial applications:

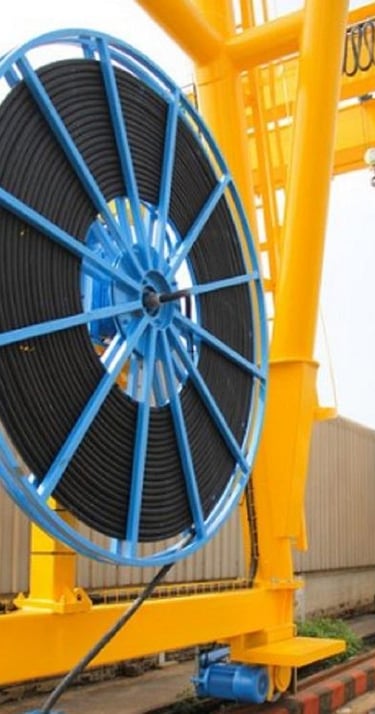

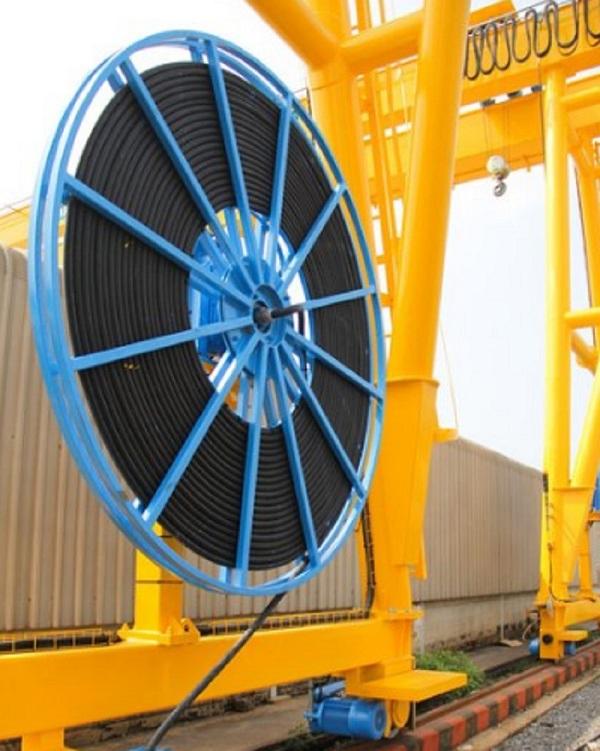

Heavy-Duty Crane Festoon Systems: Supplies main power and screened control signals on overhead traveling cranes, gantry cranes, container cranes, and portal hoists.
Drag Lines and Cable Carrier Chains: Powers automated equipment, moving machinery arms, and long-travel energy chains operating up to 210 m/min.
Machine Tools and Moving Equipment Parts: Controls CNC machining centers, dynamic gantry systems, and automated robotic cells requiring high flex life and EMI shielding.
Materials Handling and Conveyor Facilities: Connects mobile trippers, automated transfer cars, and sorting equipment in distribution centers and bulk warehouses.
Submerged and High-Humidity Installations: Powers water treatment machinery, dynamic pump systems, and industrial washdown bays where cables are submerged up to 50 meters depth.
Pendant Controls and Crane Control Stations: Provides screened control lines for suspended pushbutton stations and dynamic operator cabs.
Selection and Installation Guidance
To ensure long service life when installing D12YC11Y cables, engineers and electrical contractors should follow key installation best practices:
1. Confirm Zero Torsional Twist During Laying
Torsional twisting is strictly prohibited for D12YC11Y cables. When unspooling cable from factory drums:
Always roll the reel along the ground or mount it on a shaft payout stand.
Never pull cable off the side flange of a stationary spool, as this introduces permanent axial twist that damages the internal braid screen and core layout during operation.
2. Match Minimum Bending Radii to Festoon Saddles
Ensure all festoon storage loops, trolley saddles, and cable chain channels meet or exceed the minimum dynamic bending radius requirement of 6 times the overall cable diameter (6 x D). Using undersized saddles concentrates mechanical stress and shortens cable service life.
3. Maintain Correct Tension Limits
Ensure towing ropes or relief cables accept the main towing forces in fast festoon systems. The mechanical tensile force applied directly to the cable's copper conductors must never exceed 15 N/mm² during dynamic movement.
4. Ground the Copper Braid Screen Correctly
To ensure maximum EMC protection without creating ground loops, connect the tinned copper braid screen to earth ground at both ends using 360-degree EMC cable glands. For delicate instrument signals, follow the site's specific earthing architecture to balance low-frequency and high-frequency noise suppression.
Conclusion
The FESTOONFLEX C-PUR-HF D12YC11Y is a specialized low-voltage screened round cable designed for demanding festoon and dynamic motion applications. By combining Class 5 flexible plain copper conductors, halogen-free polyester insulation, a tinned copper braid screen, and a tough polyurethane outer jacket, this cable delivers consistent power delivery, high signal integrity, and long service life.
For industrial operators across Australia facing abrasive dust, intense UV exposure, continuous dynamic motion, and coastal moisture, choosing high-specification PUR-jacketed dynamic control cables—such as those manufactured by Feichun—ensures long-term operational reliability. Investing in purpose-built D12YC11Y cabling protects dynamic machinery, eliminates costly unscheduled downtime, and keeps heavy materials handling systems running smoothly year after year.
