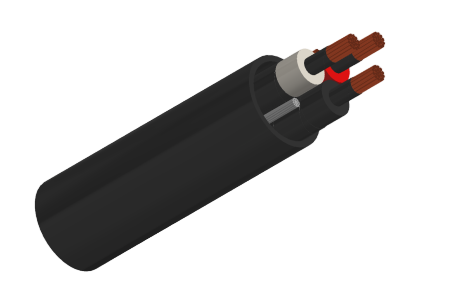

Type MP-GC Three-Conductor Mine Power Feeder Cable, CPE Jacket, 25kV

These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores × AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
3×1	19	5	8	0.260	6.4	0.14	3.6	2.37	60.2	3435	5112	187
3×1/0	19	4	8	0.260	6.4	0.14	3.6	2.45	62.2	3815	5677	218
3×2/0	19	3	8	0.260	6.4	0.14	3.6	2.54	64.5	4290	6384	249
3×3/0	19	2	8	0.260	6.4	0.14	3.6	2.65	67.3	4875	7255	286
3×4/0	19	1	8	0.260	6.4	0.14	3.6	2.81	71.4	5665	8430	327
3×250	37	1/0	8	0.260	6.4	0.17	4.3	2.97	75.4	6495	9666	360
3×350	37	2/0	8	0.260	6.4	0.17	4.3	3.18	80.8	7970	11860	438
3×500	37	4/0	8	0.260	6.4	0.17	4.3	3.45	87.6	10300	15328	536

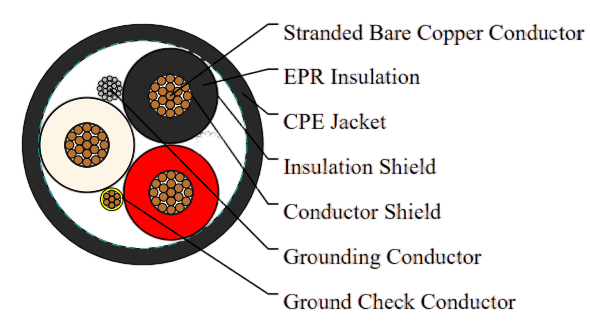

Conductors	Stranded annealed bare copper conductor.
Conductor Shield	Conducting layer.
Insulation	Ethylene Propylene Rubber (EPR).
Insulation Shield	Conducting layer + copper tape.
Ground Check Conductor	Copper conductor with a yellow polypropylene insulation.
Grounding Conductor	Tinned copper conductor
Jacket	Chlorinated Polyethylene (CPE), black.
