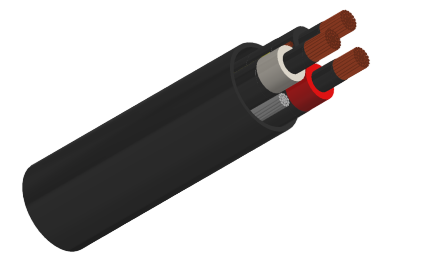

Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Jacket, 15kV

These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores × AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
3×2	7	6	8	0.175	4.4	0.14	3.6	1.90	48.3	2021	3007	164
3×1	19	5	8	0.175	4.4	0.14	3.6	1.99	50.6	2503	3724	187
3×1/0	19	4	8	0.175	4.4	0.14	3.6	2.07	52.6	2658	3955	215
3×2/0	19	3	8	0.175	4.4	0.14	3.6	2.16	54.9	3066	4562	246
3×3/0	19	2	8	0.175	4.4	0.14	3.6	2.27	57.7	3710	5530	283
3×4/0	19	1	8	0.175	4.4	0.14	3.6	2.39	60.7	4369	6500	325
3×250	37	1/0	8	0.175	4.4	0.14	3.6	2.48	63.0	4875	7253	359
3×350	37	2/0	8	0.175	4.4	0.14	3.6	2.70	68.6	6412	9540	438
3×500	37	4/0	8	0.175	4.4	0.17	4.3	3.08	78.2	8610	12810	536

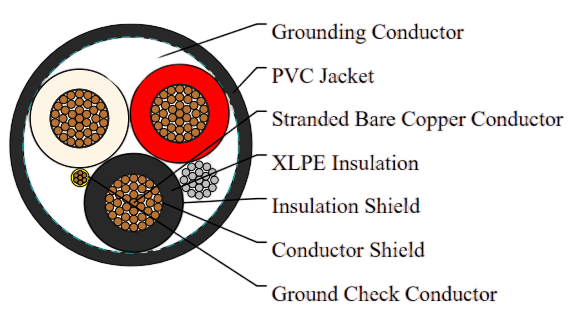

Conductors	Stranded annealed bare copper conductor.
Conductor Shield	Conducting layer.
Insulation	Cross-Linked Polyethylene (XLPE).
Insulation Shield	Conducting layer + copper tape.
Ground Check Conductor	Copper conductor with a yellow polypropylene insulation.
Grounding Conductor	Tinned copper conductor
Jacket	Polyvinyl Chloride (PVC), black.
