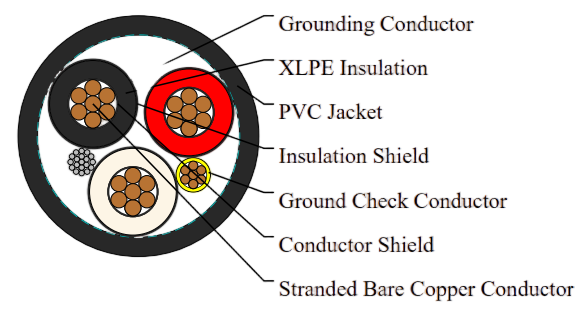

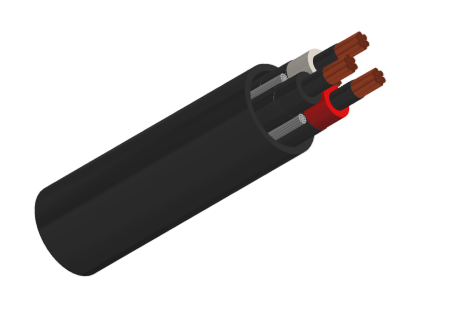

Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Jacket, 5kV

These cables are designed for connections between units of mine distribution systems, suitable for direct burial in wet and dry locations.

Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores × AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
3×4	7	8	8	0.09	2.3	0.11	2.8	1.41	35.8	1224	1821	122
3×2	7	6	8	0.09	2.3	0.11	2.8	1.47	37.3	1653	2459	159
3×1	19	5	8	0.09	2.3	0.11	2.8	1.54	39.1	1950	2901	184
3×1/0	19	4	8	0.09	2.3	0.11	2.8	1.63	41.4	2200	3273	211
3×2/0	19	3	8	0.09	2.3	0.11	2.8	1.72	43.7	2721	4048	243
3×3/0	19	2	8	0.09	2.3	0.14	3.6	1.89	48.0	3170	4720	279
3×4/0	19	1	8	0.09	2.3	0.14	3.6	2.01	51.0	3845	5721	321
3×250	37	1/0	8	0.09	2.3	0.14	3.6	2.10	53.3	4321	6429	355
3×350	37	2/0	8	0.09	2.3	0.14	3.6	2.31	58.7	5652	8409	435
3×500	37	4/0	8	0.09	2.3	0.14	3.6	2.59	65.8	7721	11487	536

Conductors	Stranded annealed bare copper conductor.
Conductor Shield	Conducting layer.
Insulation	Cross-Linked Polyethylene (XLPE).
Insulation Shield	Conducting layer + copper tape.
Ground Check Conductor	Copper conductor with a yellow polypropylene insulation.
Grounding Conductor	Tinned copper conductor
Jacket	Polyvinyl Chloride (PVC), black.
