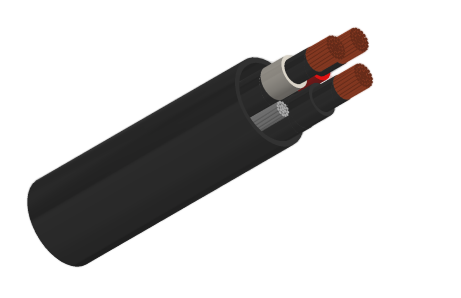

Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Jacket, 8kV

These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores × AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
3×4	7	8	8	0.115	2.9	0.11	2.8	1.52	38.6	1366	2032	122
3×2	7	6	8	0.115	2.9	0.11	2.8	1.58	40.1	1727	2569	159
3×1	19	5	8	0.115	2.9	0.11	2.8	1.66	42.2	2174	3234	184
3×1/0	19	4	8	0.115	2.9	0.11	2.8	1.74	44.2	2656	3952	211
3×2/0	19	3	8	0.115	2.9	0.14	3.6	1.90	48.3	2895	4307	243
3×3/0	19	2	8	0.115	2.9	0.14	3.6	2.00	50.8	3320	4950	279
3×4/0	19	1	8	0.115	2.9	0.14	3.6	2.12	53.8	3983	5926	321
3×250	37	1/0	8	0.115	2.9	0.14	3.6	2.22	56.4	4484	6671	355
3×350	37	2/0	8	0.115	2.9	0.14	3.6	2.43	61.7	5827	8669	435
3×500	37	4/0	8	0.115	2.9	0.14	3.6	2.70	68.6	7893	11743	536

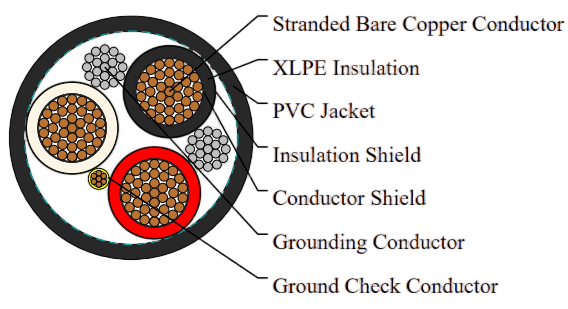

Conductors	Stranded annealed bare copper conductor.
Conductor Shield	Conducting layer.
Insulation	Cross-Linked Polyethylene (XLPE).
Insulation Shield	Conducting layer + copper tape.
Ground Check Conductor	Copper conductor with a yellow polypropylene insulation.
Grounding Conductor	Tinned copper conductor
Jacket	Polyvinyl Chloride (PVC), black.
